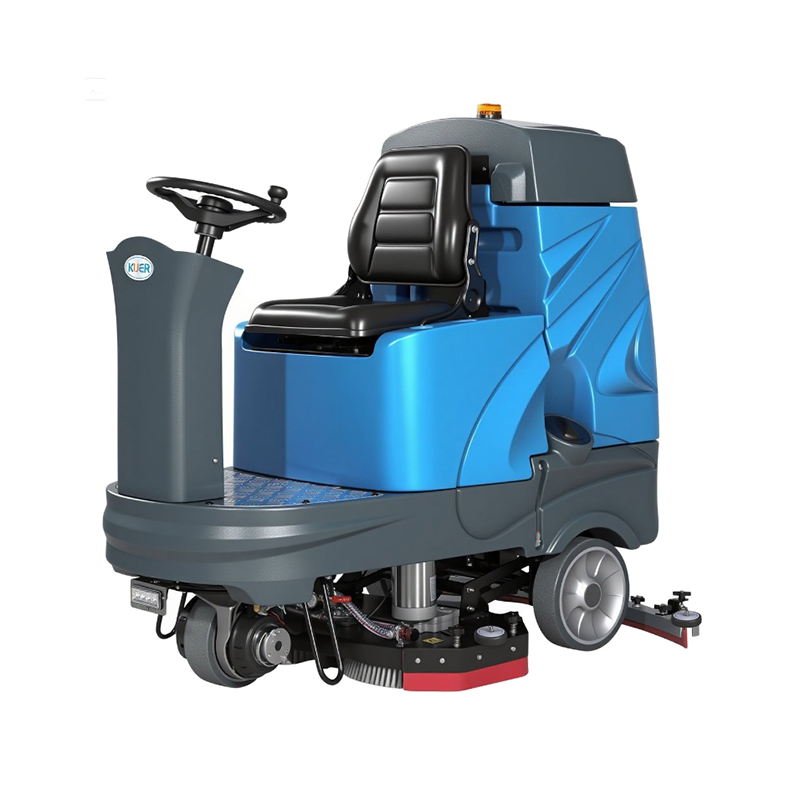

The KUER XJ160S is a heavy-duty, commercial, ride-on floor scrubber designed for large-scale hard floor cleaning. It integrates an efficient cleaning system with intelligent safety features. Equipped with a 2150W high-power system and dual 17-inch brush discs, it delivers powerful cleaning with a 45kg brush pressure. Combined with an 1180mm wide squeegee, it provides an integrated "wash-suction-filter" cleaning process. Its innovative automatic linkage mode allows for "moving forward, operating; stopping, shutting down." Its integrated water retaining ring prevents secondary contamination at the source, making it a benchmark for efficient, integrated vacuuming and mopping cleaning machines. In terms of intelligent safety and battery life, the device features three built-in mechanisms: motor soft start, overflow protection, and overcurrent protection. As a commercial cleaning machine adaptable to multiple scenarios, the KUER XJ160S, with its core advantages of "powerful, intelligent, and easy maintenance," provides an efficient cleaning solution that replaces manual labor with machinery for industrial manufacturing, retail, and other sectors.
I. Product Positioning: The Efficiency Benchmark for Commercial Cleaning
The KUER XJ160S is a digital, intelligent commercial ride-on floor scrubber designed by Hefei Kuer Environmental Protection for large public spaces and industrial applications. As a highly efficient vacuum-and-mop cleaning machine, its core purpose is to replace traditional manual and push-type cleaning tools, solving the cleaning challenges of large hard surfaces in places like supermarkets, factories, and transportation hubs. Combining the durability of heavy-duty industrial scrubbers with the convenience of commercial cleaning equipment, it is a core solution for upgrading cleaning by replacing manual labor with machinery.
II.Core System: Hardcore Configuration Empowers Deep Cleaning

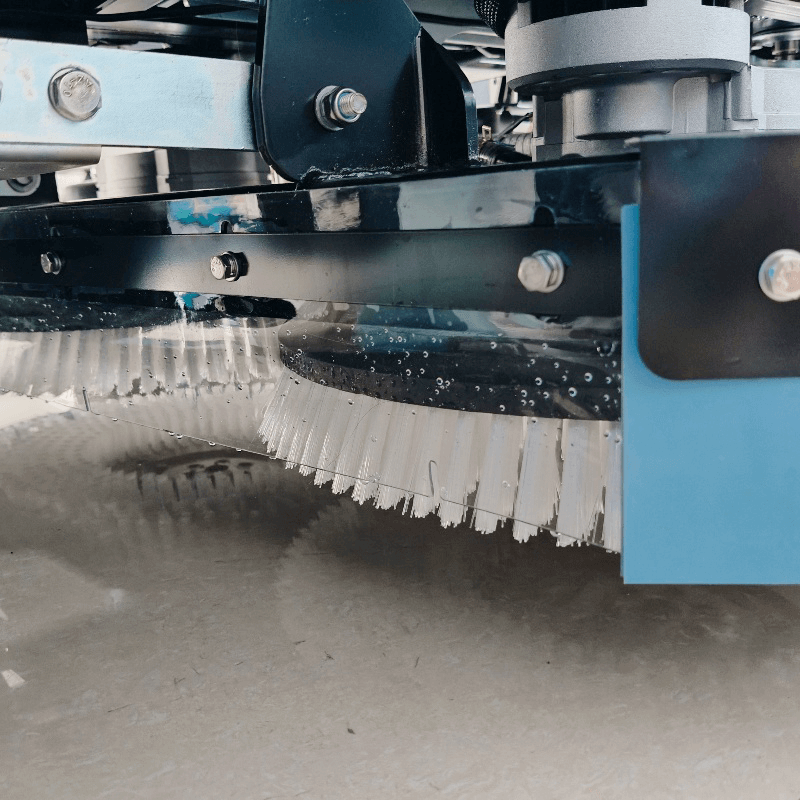

Dual-Brush Collaborative Cleaning Module: Equipped with an independently driven dual-disc brush system, this powerful cleaning system features industrial-grade optimized brush speed and downforce, effectively removing stubborn stains such as oil and dust. Its floating scrubbing mechanism automatically conforms to the contours of the floor, ensuring consistent cleaning across varying surface roughness and preventing missed corners. Anti-recontamination and Water Suction System: Equipped with a curved cast aluminum squeegee and water retaining ring structure, the squeegee features a dual parabolic design, ensuring uniform suction across the cleaning path, quickly absorbing wastewater while scrubbing. A pre-filter basket traps large particles, preventing water tank clogging and secondary contamination of the floor, achieving an integrated "washing-suction-filtration" operation.
Digital Safety Protection: As an intelligent commercial cleaning appliance, it features triple motor protection mechanisms – a soft start function to prevent current surges, and automatic shutdown for overflow and overcurrent protection. A clear operation panel and touch-n-go control logic reduce operator training costs and accommodate cleaners of all skill levels.
III. Power and Endurance: Suitable for high-frequency commercial use
Powered by a maintenance-free lead-acid battery, it supports "on-the-go" charging and features a minimum voltage warning function to prevent battery damage from excessive discharge. The device's single-charge cycle can handle continuous cleaning of over 5,000 square meters, making it suitable for high-frequency cleaning scenarios such as large supermarkets and factory workshops. Compared to traditional equipment, it delivers over five times the efficiency, truly achieving cost optimization with "one machine replacing ten people."
IV. Scenario Adaptability: Comprehensive Coverage of Commercial Cleaning Needs
As a multi-scenario commercial cleaning machine, the KUER XJ160S has three core application areas:
Industrial Manufacturing: It handles oily floors in automotive workshops and food processing plants. As a heavy-duty floor scrubber, its wear-resistant chassis and powerful decontamination system withstand challenging conditions.
Public Service: Operating at a low noise level of ≤75dB in subway stations and hospitals, it avoids disturbing pedestrians and medical environments, meeting the cleaning needs of noise-sensitive areas.
Retail: As a cleaning machine for large supermarkets, its compact design allows for flexible maneuvers between shelves, efficiently covering areas like aisles and parking lots.
V. Core Advantages: Full Commercialization
This device combines the durability of an industrial scrubber with the ease of maintenance of commercial equipment. Its steel frame and corrosion-resistant body resist impact and chemical corrosion, while its "Easy Maintenance System" allows tool-free removal of the brush disc and squeegee, reducing daily maintenance costs. Furthermore, by optimizing the cleaning process and reducing detergent and water consumption, it reduces cleaning consumables costs by over 30% compared to traditional methods, achieving both economic benefits and improved cleaning results.
Technical Parameters
Model
KUER-XJ160S
Cleaning Path Mm (Brush Size"Inch)
460mm/17"*2
Squeegee Width
1200mm
Max.Coverage Per Hour
6500㎡/h
Continious Operating Time
3-4.5h
Solution Tank Capacity
160L(42gal)
Recovery Tank Capacity
180L(47.5gal)
Battery (Free Maintenance)
24V/200A
Drive Motor
650W（0.87hp)
Vacuum Motor
550W(0.74hp)
Brush Motor
550W(0.74hp)*2
Operating Weight (Inc.Battery)
412KG
Operating Size
1650*1200*1490mm
Product Uses
The KUER XJ160S commercial ride-on floor scrubber provides precise solutions to address four key cleaning pain points in commercial scenarios:
1. Addressing the challenges of "excessive oil, debris, and slow cleaning" in industrial manufacturing workshops, it powerfully removes oil and debris, is durable and impact-resistant, and can support multiple cleaning shifts of 6-8 hours on a single charge.
2. Targeting the needs of large commercial complexes with large crowds, numerous stains, and the need to prevent slipping and not disturb customers, this model features simultaneous cleaning and drying capabilities, a flexible, easy-to-maneuver design, and low noise levels. It can clean up to 5,000 square meters in a single operation, helping to quickly complete store closings.
3. Addressing the challenges of large transportation hubs, where cleaning is limited to nighttime hours and standard equipment is inefficient, this model boasts a cleaning speed five times that of a push-type trolley, can climb gentle slopes, and features a large water tank, ensuring efficient cleaning of large areas at night.
4. Targeting the requirements of medical institutions for sterile, residue-free cleaning, and anti-slip surfaces without disturbing patients, this model supports medical-grade detergents, can clean close to seams, and can dry out dirty water. Its disinfectable, low-noise design makes it fully adaptable to commercial cleaning needs in various scenarios.
Product Operate Guide
1. Pre-Startup Preparation
Check Equipment Status
Power On
Adjust Cleaning Parameters
Driving and Cleaning
2. Special Operations:
Narrow Areas (e.g., between shelves): Reduce speed and turn slightly to avoid collisions.
Gentle Slopes (≤ 25°): Drive up and down the slope at a steady speed without stopping to prevent rolling.
3. Shutdown and Finishing
Stop Cleaning
Equipment Maintenance
Charging and Storage
4. Safety Precautions
Operation is permitted only to trained personnel. Unlicensed personnel and children are prohibited.
Avoid cleaning around electrical wires and deep, stagnant water pits. Do not clean non-hard surfaces (e.g., carpet or grass).
In the event of equipment malfunction (e.g., unusual motor noise or abnormal water absorption), immediately shut down the machine and contact after-sales service. Do not disassemble the machine yourself.
FAQ
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: What is your MOQ ?
A: Without limited MOQ. If the quantity is large, the price can be more favorable.
Q: How do you control your product quality ?
A: Firstly, our cleaning equipment is in strict accordance with the ISO quality and CE system requirement.
Secondly, each procedure is designated by a particular person.
Thirdly, we have a professional QC team.
Q: What should I consider when I choose a floor scrubber ?
Kuer, a specialist brand of commercial floor scrubbers under Hefei Kuer Environmental Protection Technology Co., Ltd. boasts a 20,000 square meter intelligent manufacturing base.
