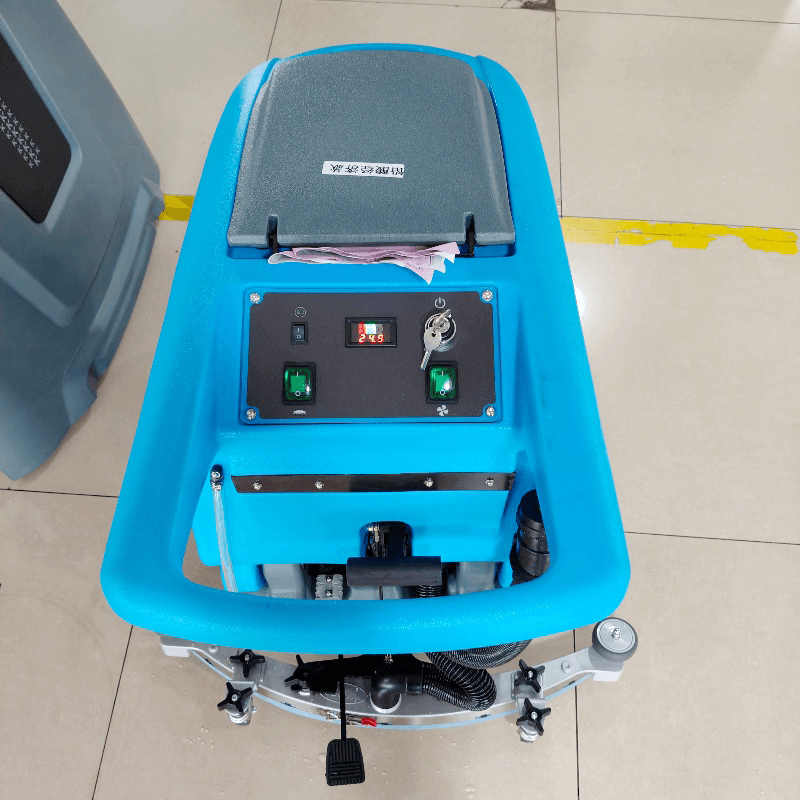

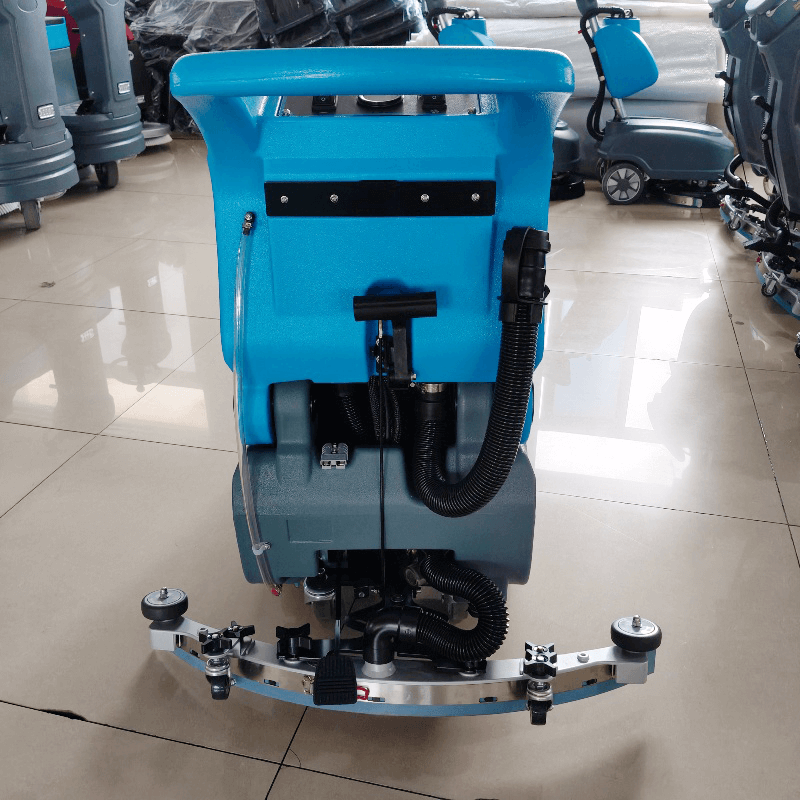

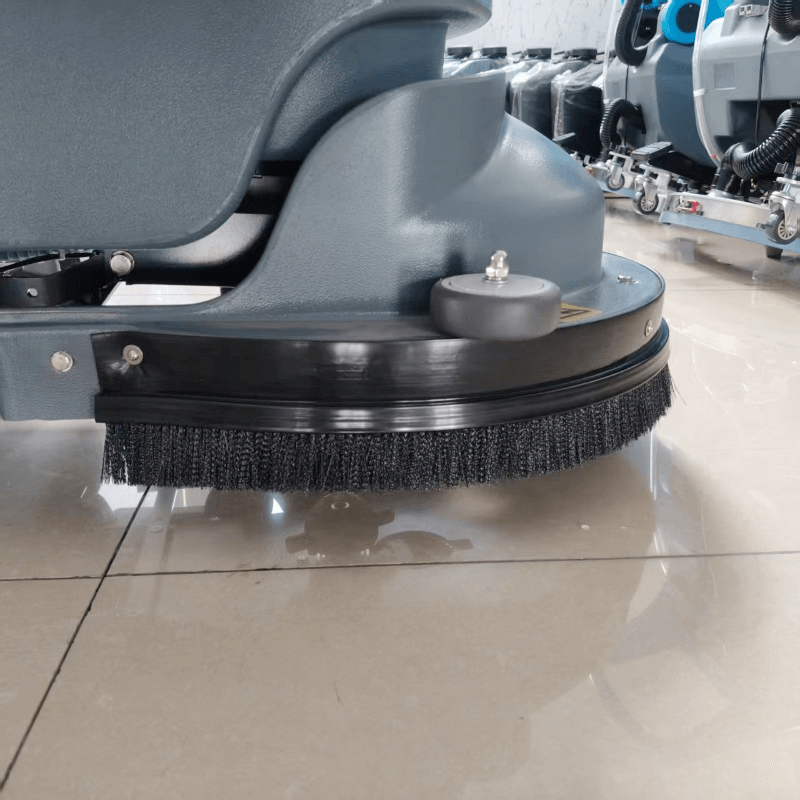

The KUER XS50D's operator panel features a battery indicator, main power switch, brush start switch, suction motor switch, and a resettable trip circuit breaker. The fresh water tank holds 50L, and the wastewater tank holds 55L. The medium-hardness brush discs are activated by pressing a foot pedal. Combined with the suction motor, they simultaneously scrub and absorb wastewater. The squeegee blades are reversible, and the wastewater tank opening is wide, allowing for easy inspection.

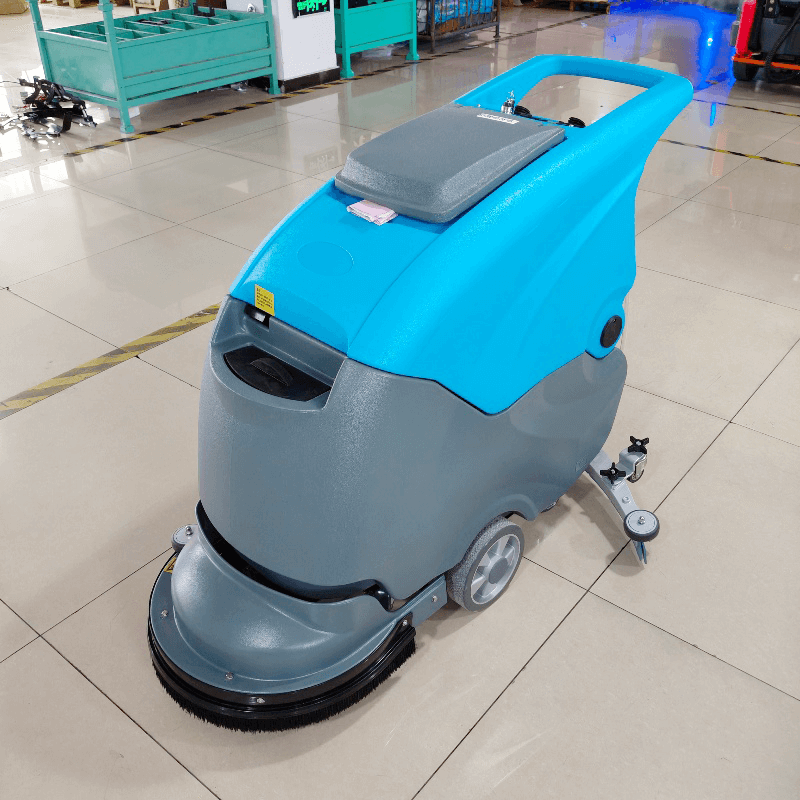

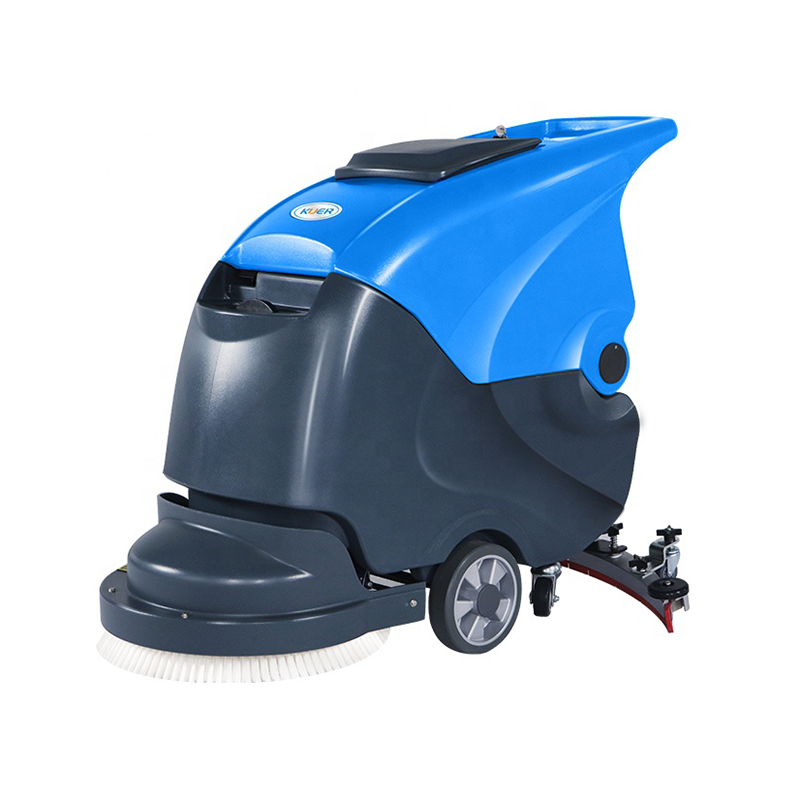

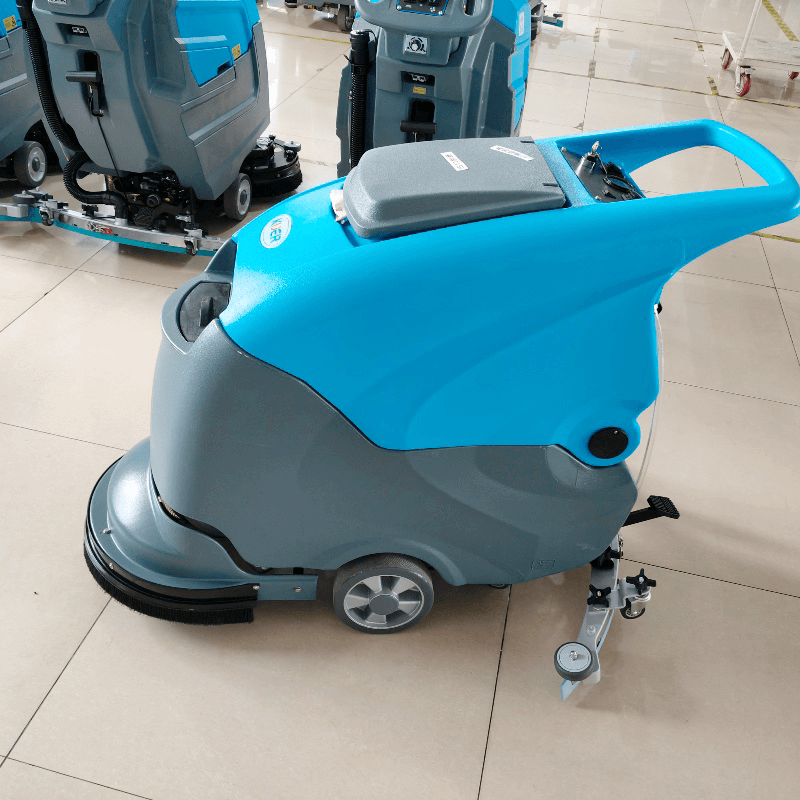

The KUER XS50D walk-behind floor scrubber, a reliable electric walk-behind floor scrubber, boasts exceptional cleaning performance thanks to its outstanding design and features. Below is an introduction to its features and related information:
1. Power and Battery Life
This industrial floor scrubber uses a 24V/100Ah maintenance-free lead-acid battery paired with a 24V/15A charger. Charging takes approximately 6-8 hours, and a full charge provides 3-4 hours of continuous operation. This ample power reserve ensures extended cleaning operations without frequent charging, ideal for a heavy-duty floor scrubber.
2. Cleaning Capacity
As a high-efficiency floor scrubber, its 490mm cleaning width and 830mm squeegee width achieve 1750m²/h efficiency, suiting small commercial spaces and large industrial areas—also a practical commercial floor scrubber.
3. Cleaning Operation
The panel is intuitive; 550W brush and 450W suction motors make this professional floor scrubber scrub and remove wastewater simultaneously for thorough cleaning.
4. Water Tank Design & Machine Advantages
It has 50L fresh water and 55L wastewater tanks. Compact (1220×830×950mm, 138kg) with stable structure, flexible squeegee and reversible strips, it's a versatile choice for various scenarios.
Technical Parameters
Model
KUER-XS50D
Cleaning Path Mm (Brush Size"Inch)
490mm/18"
Squeegee Width
830mm
Max.Coverage Per Hour
1750㎡/h
Continious Operating Time
3-4h
Solution Tank Capacity
45L(11.89gal)
Recovery Tank Capacity
50L(13.2gal)
Battery (Free Maintenance)
24V/100A
Drive Motor
/
Vacuum Motor
450W(0.48hp)
Brush Motor
550W(0.5hp)
Operating Weight (Inc.Battery)
138KG
Operating Size
1220*830*950mm
Product Uses
1. Commercial Offices
Office building lobbies and work areas are prone to frequent traffic and can easily become dirty. This product effectively cleans marble and tile floors with simple operation, low noise, and a comfortable environment.
2. Retail Stores
Supermarkets and shopping malls can handle a variety of dirt and surface conditions. The large water tank reduces water changes, keeping store floors clean and enhancing the store's image.
3. Food Processing Industry
Food workshops are prone to oil stains, spilled ingredients, and other stains. This product adheres to the floor to absorb wastewater and clean epoxy floors, maintaining high hygiene standards and ensuring food safety.
4. Electronics Production Workshops
Clean anti-static epoxy floors, avoid damaging the floor, remove dust, and maintain a clean production environment, thereby ensuring product quality.
Product Operate Guide
I. Pre-Start
1. Assembly and Inspection
Connect the Squeegee Assembly
Install the Brush/Clean Pad
Inspection Points
2. Solution Filling
Fill the Clean Water Tank
Check for Leaks
II. Standard Operating Procedures
1. Starting the Machine
Turn on the main power switch. The indicator light on the instrument panel will illuminate. Observe the battery charge gauge. Press the brush start button and confirm that the brush is rotating in the correct direction (clockwise is standard).
2. Cleaning
Activate the suction function as needed; Turn the brush in a corner.
Precautions
3. Shutdown and Finishing
First, turn off the brush motor. Continue to operate the suction function for 30 seconds to remove any remaining wastewater. Press the main power switch to turn off the machine. Empty the wastewater tank. Clean the accessories.
III. Daily Maintenance and Troubleshooting
1. Daily Maintenance
Clean the water tank
Check consumables
Charge and Maintenance
FAQ
Q: Does the product have after-sales service?
A: Yes, the products have 1-2 year warranty. Quality problems can provide free parts.
Q: Does the product have instructions for use?
A: Of course, each of our products has a video and instruction. And we have professional technicians to answer your questions.
Q: Can custom designs be accepted?
A: Yes, please tell us your requirements, and professional engineers will design it for you.
Q: How long is the delivery date of the product?
A: Once we receive the order, we will arrange for our factory staff to arrange it immediately. Delivery will be completed within 7-15 days after payment.
Kuer, a specialist brand of commercial floor scrubbers under Hefei Kuer Environmental Protection Technology Co., Ltd. boasts a 20,000 square meter intelligent manufacturing base.
