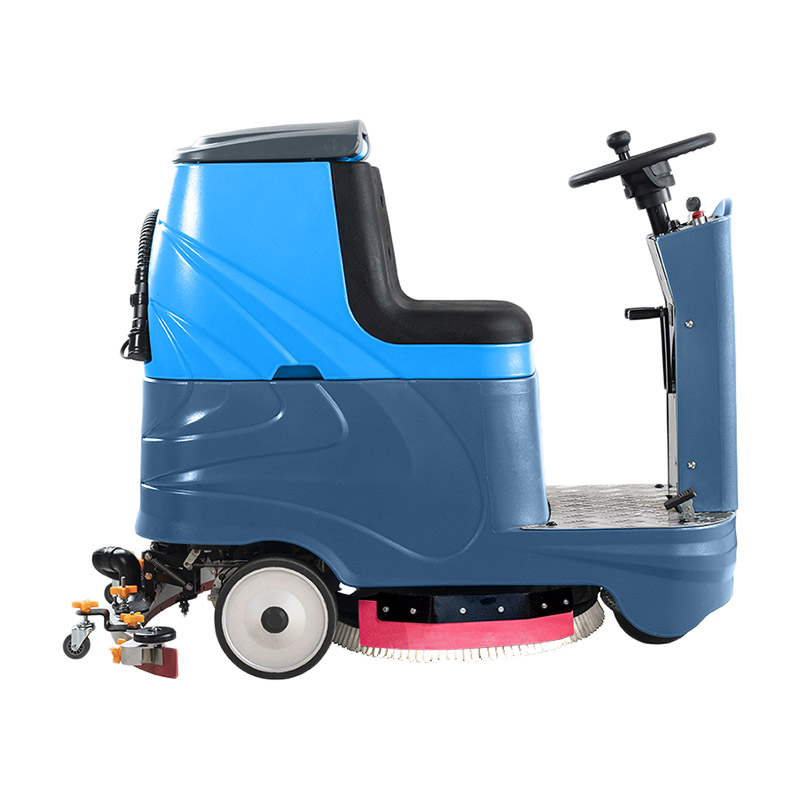

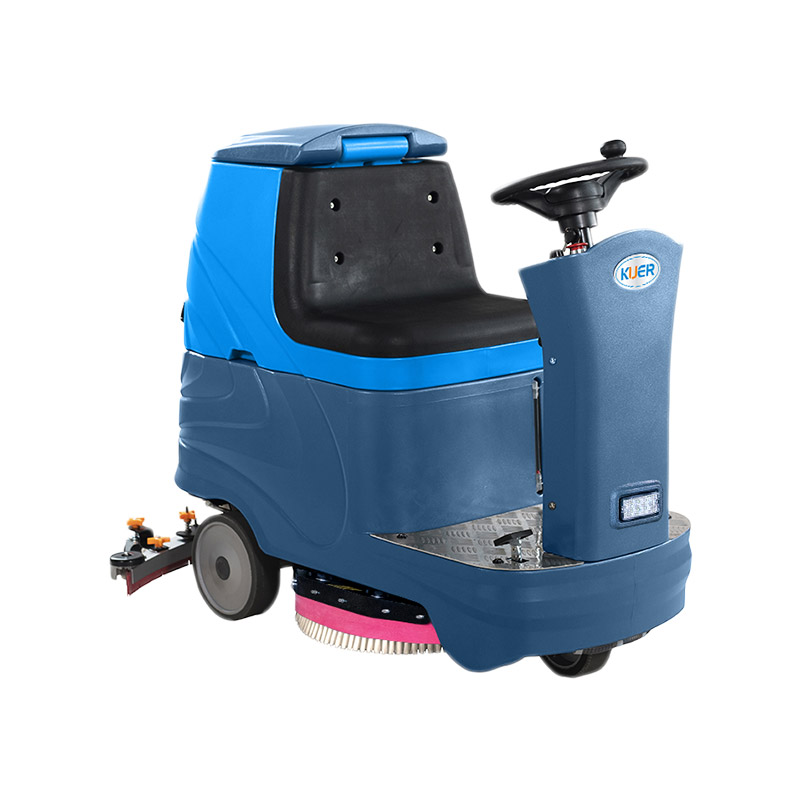

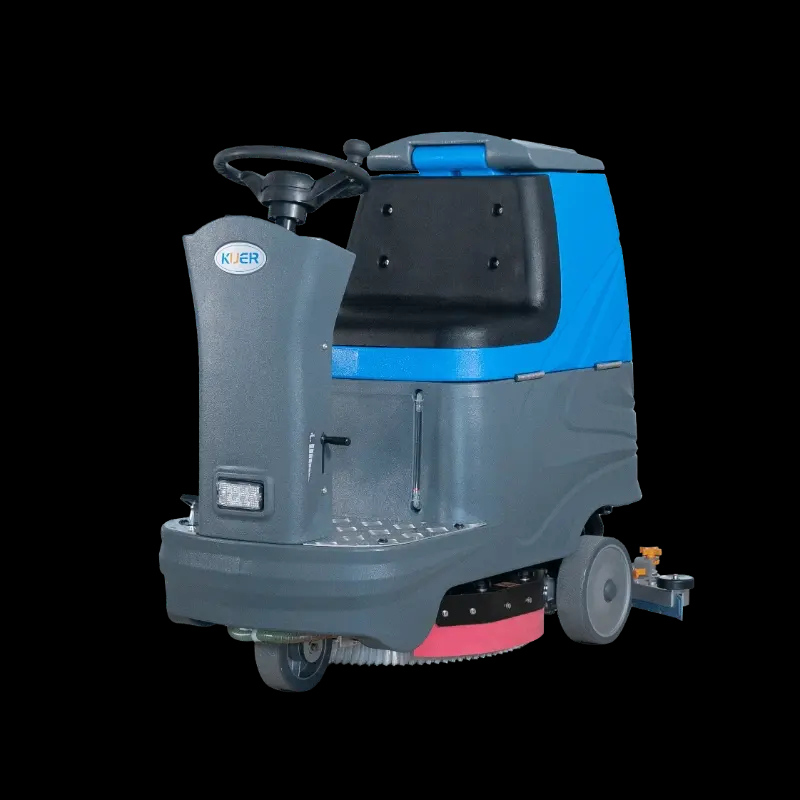

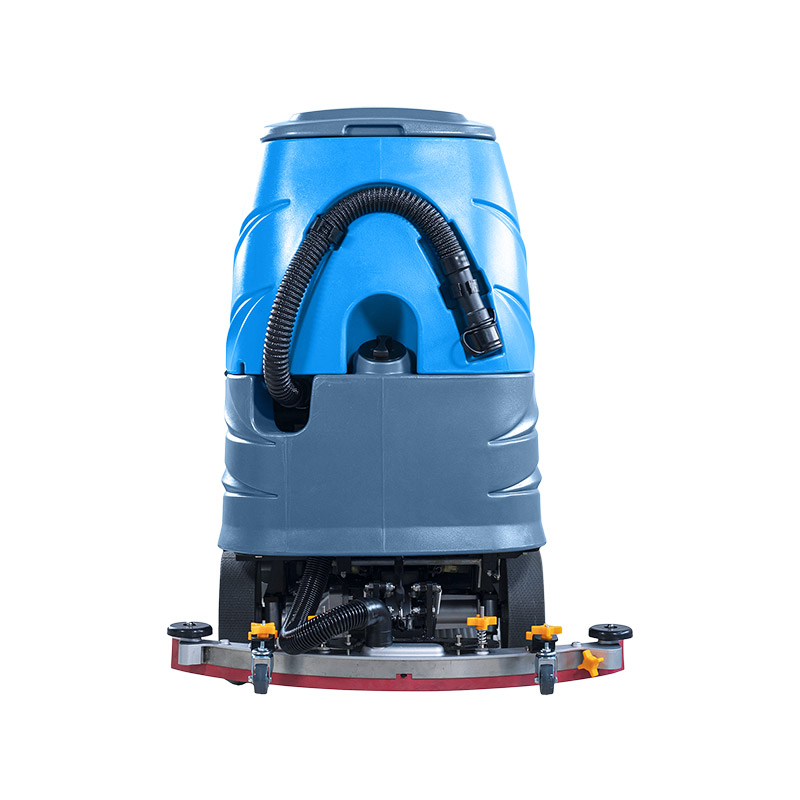

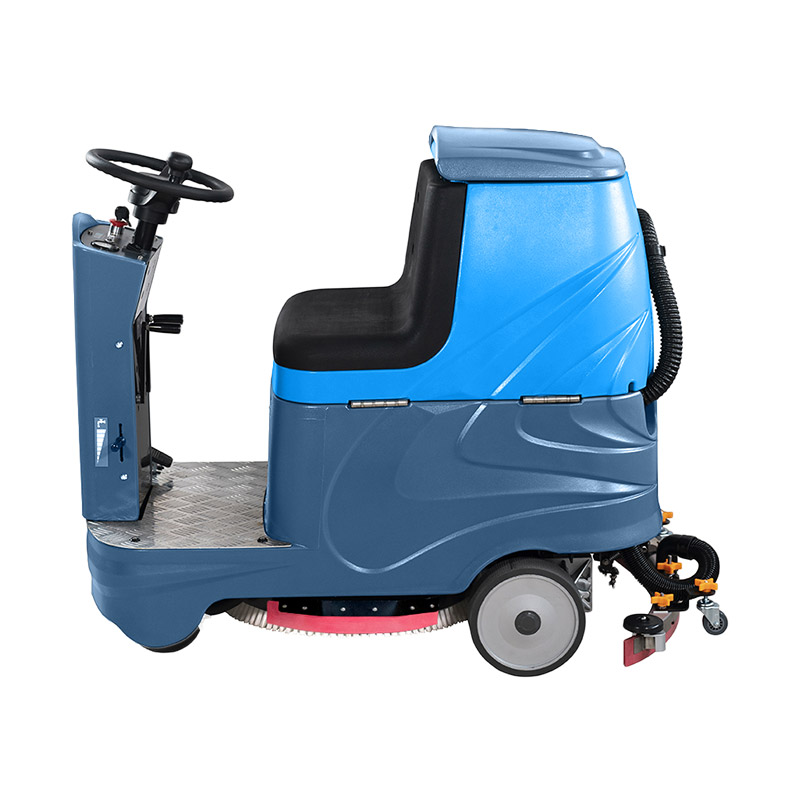

The KUER XJ60D is a high-end ride-on floor scrubber developed by Hefei Kuer Environmental Technology Co., Ltd. As a company specializing in the research and development and manufacturing of cleaning equipment, Kuer Environmental Technology leverages its large-scale production capabilities and international certifications such as CE and ROHS to ensure reliable product quality. Positioned as a core component of efficient cleaning solutions for large venues, this machine focuses on "replacing manual labor, reducing costs, and increasing efficiency." It is designed specifically for cleaning large hard surfaces and is suitable for a wide range of commercial, industrial, and public areas.
| Availability: | |
|---|---|
| Quantity: | |
XJ60D
KUER
Product Advantage
1. Ride-on Design, Efficient and Convenient Operation
This semi-automated ride-on design features an independent 400W motor and an adjustable travel speed of 0-5.5 km/h. This eliminates the need for operators to walk, significantly reducing labor intensity. Its compact design (1300*830*1080mm) allows for flexible maneuverability even in shopping mall aisles and workshop lanes. Its 560mm-wide scrubbing brush and 830mm-wide suction blade deliver integrated "clean-dry" operation, leaving floors free of water and stains, eliminating the need for secondary cleaning.
2. Powerful Powertrain, Optimizing Endurance and Efficiency
Equipped with a large-capacity 24V/100Ah battery pack, it offers 4-5 hours of continuous operation on a single charge, meeting all-weather cleaning needs. A recharge cycle takes only 6-8 hours. The core cleaning system consists of a 550W brush motor and a 450W suction motor, delivering a cleaning efficiency of up to 3,300 m2/h, equivalent to the work of 10 manual cleaners, significantly reducing labor costs. The large-capacity 55L fresh water tank and 60L waste water tank reduce the need for mid-process water and waste removal, further improving operational consistency.
3. Universal Adaptability and Strong Floor Compatibility
The medium-hardness disc brush design is compatible with nearly all hard flooring materials, including tile, epoxy, corundum, terrazzo, and PVC. Whether it's greasy factory floors, dust and footprints in supermarkets, or frequent foot traffic stains in subway stations, the machine can achieve deep cleaning with precisely adjustable cleaning power. Its flame-retardant ABS plastic exterior is wear-resistant and corrosion-resistant, making it suitable for complex operating environments.
Technical Parameters
| Model | KUER-XJ60D |
| Squeegee width | 830mm |
| Max.coverage per hour | 3300㎡ |
| Continious operating time | 3.5-4.5H |
| Solution tank capacity | 55L(14.5gal) |
| Recovery tank capacity | 60L(15.8gal) |
| Battery(free maintenance) | 24V/100AH |
| Drive motor | 400W(0.54hp) |
| Vacuum motor | 450W(0.6hp) |
| Brush motor | 550W(0.74hp) |
| Operating weight | 214KG |
| Operating size | 1300*830*1080mm |
Product Uses
1. Commercial Retail
Suitable for large supermarkets and shopping malls, it addresses high traffic volumes and the potential for debris and stains on floors. Its efficient cleaning capacity of 3,300 m2/h allows for rapid coverage of aisles and atriums. Its integrated "clean and dry" function prevents slips caused by accumulated water, and its silent operation does not disrupt business operations, balancing cleaning and operational needs.
2. Industrial Manufacturing
Core services include factory workshops and logistics warehouses, addressing the pain points of heavy oil and dust, and the inefficiency of manual cleaning. The 550W brush motor provides powerful degreasing, while the 24V/100Ah battery provides 4-5 hours of continuous operation. The wear-resistant ABS housing is suitable for industrial environments, reducing costs and ensuring durability.
3. Public Service
Suitable for subway stations, school playgrounds, and hospital lobbies, it meets the requirements for safe and timely cleaning. The 830mm wide suction bar quickly removes debris without secondary contamination, meeting hospital standards. Its flexible steering allows it to maneuver between equipment and around corridor corners, meeting diverse cleaning needs.
Product Operate Guide
1. Pre-Operation Inspection
Battery Level Check: Check the battery level indicator on the instrument panel to ensure the battery level is ≥ 50% (if it is below this level, charge for 6-8 hours first) to avoid power outages during operation.
Water Tank Check: Open the fresh water tank cap and fill it to the line (no more than 60L), adding cleaning agents in proportion. Check that the wastewater tank is empty; if any residue remains, drain it first.
Component Inspection: Verify that the brush disc is not damaged, the suction strip is not aged, and any connections are not loose. Inspect the machine for any unusual noises or oil leaks to ensure proper operation.
2. Power On and Basic Settings
To start the machine: Insert the key and turn it to the "ON" position. The instrument panel will light up. Press the "Power" button and wait for 3 seconds for the machine to enter standby mode. Parameter Adjustment: Set the travel speed via the dashboard buttons (recommended for beginners: 2-3 km/h, increasing to 5.5 km/h after proficiency). Adjust the brush pressure according to the severity of the dirt (low for light stains, high for heavy stains like oil).
3. Cleaning Operation
Start cleaning: Press the "Brush Start" and "Suction Start" buttons and slowly push the joystick forward. The machine will automatically complete the "brush cleaning - suction drying" operation.
Operation Tips: Drive in a straight line at a constant speed and avoid frequent turns. When encountering narrow passages (width ≥ 1.2m), slow down and make minor adjustments to ensure full coverage. When cleaning stubborn stains, pause on the affected area for 2-3 seconds to enhance cleaning effectiveness.
Interim Treatment: If the water level in the clean water tank is too low or the waste water tank is overflowing, the machine will automatically alarm, requiring shutdown, refilling and draining, before restarting the machine.
4. Shutdown and Closing
To shut down the machine: First, release the joystick, press the "Brush Stop" and "Suction Stop" buttons, then turn the key to "OFF" and remove the key.
Equipment Maintenance: Empty the wastewater tank and rinse the interior to remove any residual stains or odors. Remove the brush discs to clean hair and debris. Replace severely worn brush discs. Clean the suction strips to remove any debris. Store the machine in a dry and well-ventilated area. If not used for an extended period, recharge the battery monthly.
5. Precautions
Do not operate on slopes greater than 5° to prevent the machine from sliding. Do not operate in areas with water depth greater than 10mm to prevent water from entering the motor.
Operators must wear non-slip gloves and safety shoes. Unlicensed or untrained personnel are prohibited from operating the machine.
If the machine malfunctions (such as unusual noises or leakage), shut it down immediately and contact after-sales service. Do not disassemble the machine yourself.
FAQ
Q1. Can I put my own LOGO on the products?
A: Yes. You can put your own LOGO on the products and also for the packing.
Q2:Can your machine fit our plug ?
A:We can provide plug according to your country.
Q3:How about the customized service?
A:Accept the OEM /ODM, the appearance and color of our products can be customized when the number reaches enough. In addition, the emergency brake system can also be customized for the ride on floor washer.
Q4.what quality system has been gained for your factory ?
A: We have gained : ISO9001:2015, ISO 45001:2018,ISO 14001:2015,CE for our factory.
Q5. Can I visit your factory? How can I go?
A: You are welcome. We are located in Hefei City, Anhui province,China with the convenient transportation by flight, high speed train, and bus. You could contact for route arrangement help before your visit.
