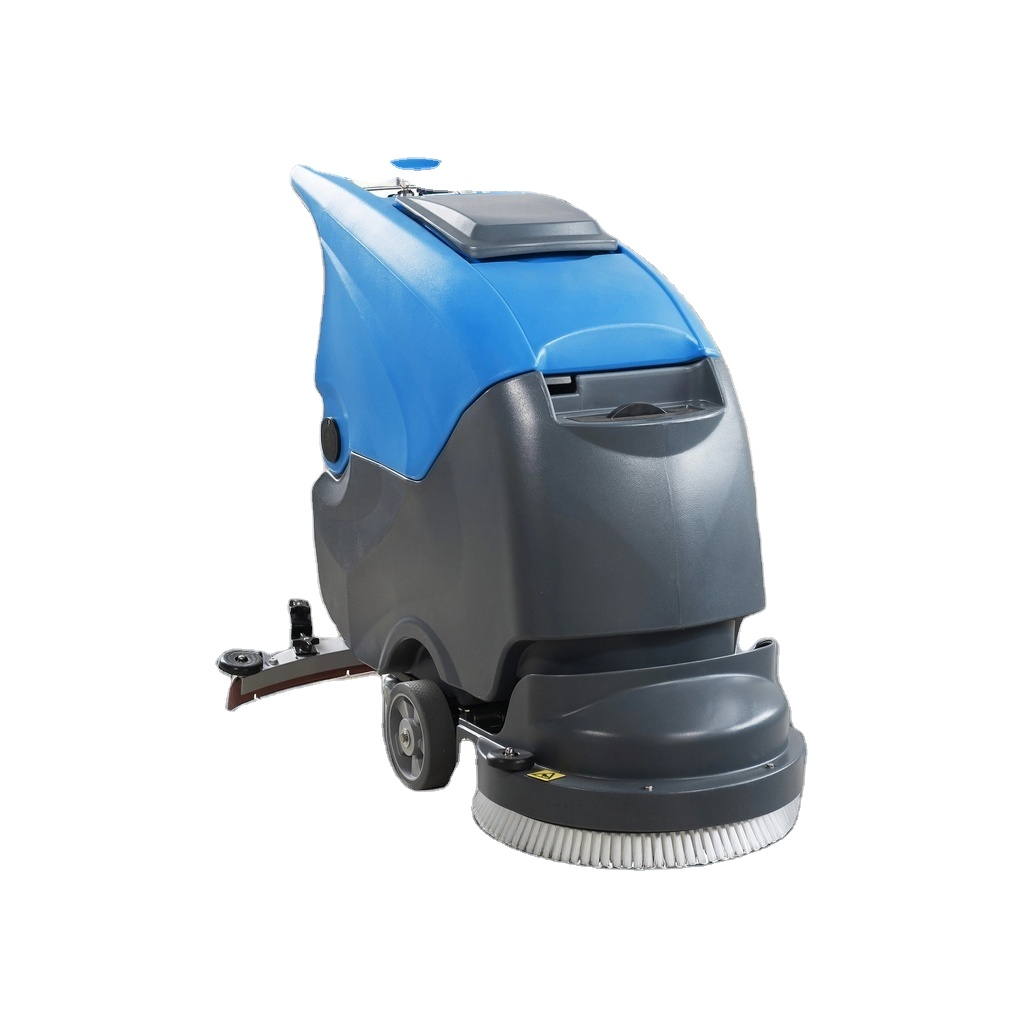

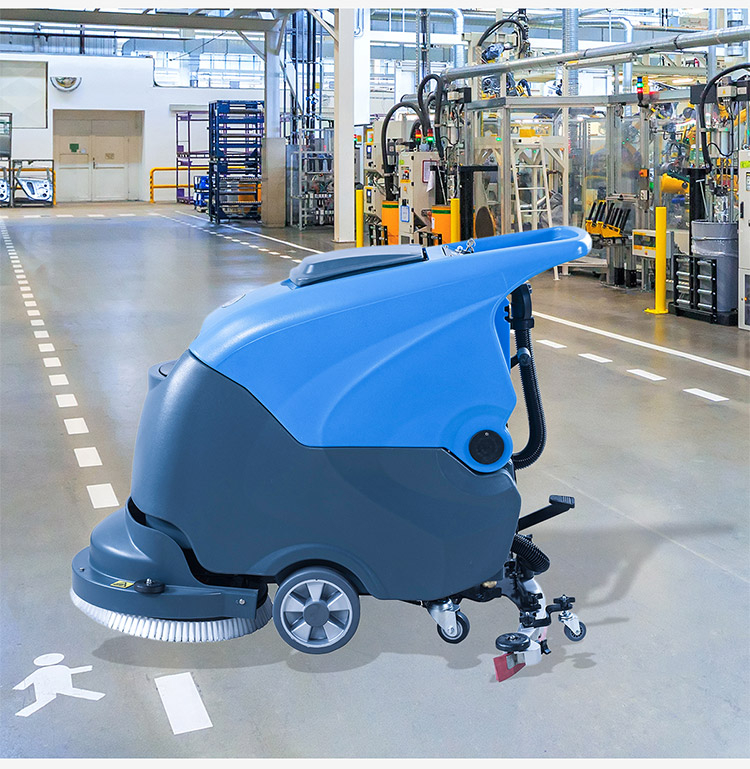

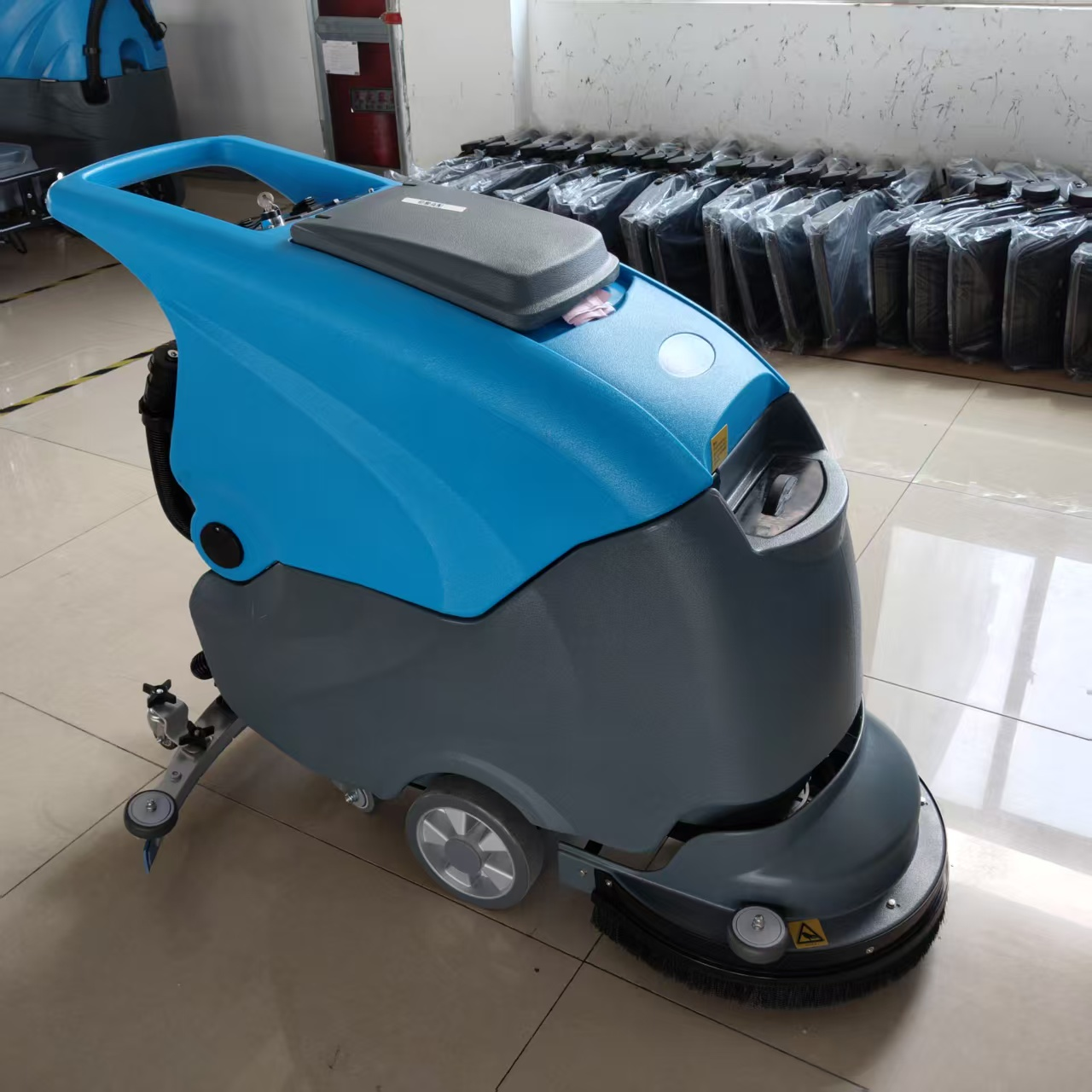

KUER XS50DZ Commercial Self-propelled Electric Floor Cleaning Machine

Name: KUER XS50DZ Commercial Self-propelled Electric Floor Cleaning Machine
Brand: KUER
Rating: 5.0 (13 reviews)

The KUER XS50DZ is a professional self-propelled floor scrubber designed by Hefei Cool Environmental Technology to enhance commercial cleaning efficiency. Positioned as an intelligent solution for high-intensity cleaning, it replaces inefficient manual work and adapts to diverse industrial scenarios. With its heavy-duty configuration and advanced performance, the XS50DZ boosts cleaning efficiency by over three times while cutting labor costs by 50%, offering enterprises a reliable, cost-effective, and intelligent floor cleaning solution.

Quantity:
Availability:





Inquire Add to Basket

Model:
XS50DZ
Brand:
KUER

Floor cleaning equipment Industrial floor scrubber China Scrubber

Product Advantage

PARAMETERS

Product Uses

Product Operate Guide

FAQ

Product Advantage

Centralized Cleaning and Vacuuming Functions: The equipment integrates clean water spraying, brushing, and wastewater recycling and drying functions, completing the "spraying → brushing → drying" process in one machine, improving the overall cleaning level.

Power and Battery Life: Equipped with a 550W brush motor and a 450W vacuum motor, coupled with a 24V/100Ah maintenance-free battery, the machine can operate continuously for 2.5-3 hours, meeting the needs of high-frequency daily cleaning. The machine can also be automatically driven, achieving a combination of "hand push + self-propelled," reducing manual labor and improving operational efficiency.

Cleaning Efficiency: With a cleaning path width of 490mm, the maximum cleaning area per hour reaches 2550㎡, far exceeding the efficiency of manual cleaning. It is equipped with a 45L clean water tank and a 50L wastewater tank, supporting integrated washing and vacuuming operations, reducing the frequency of downtime for water changes. The unique CIP in-situ cleaning function is suitable for cleaning standards in hygiene-sensitive scenarios such as food and beverage processing.

Machine Specifications: Overall dimensions: 1220×830×970mm; operating weight: 145kg; features a durable structural design suitable for long-term use in industrial environments.

Technical Parameters

Model	KUER-XS50DZ
Cleaning path mm(brush size"inch)	490mm/18"
Max.coverage per hour	2550㎡/h
Continious operating time	2.5-3h
Solution tank capacity	45L(11.89gal)
Recovery tank capacity	50L(13.21gal)
Battery(free maintenance)	24V/100A
Vacuum motor	450W(0.6hp)
Brush motor	550W（0.74hp)
Operating weight(inc.battery)	145KG
Operating size	1220830970mm

Product Uses

1. Commercial Venues: Suitable for high-traffic areas such as shopping malls, supermarkets, and convenience stores. The XS50DZ can quickly clean and dry floors outside of business hours, avoiding slippery surfaces and keeping floors sparkling clean, creating a safe and comfortable shopping environment for customers.

2. Educational and Medical Institutions: In places with strict hygiene requirements such as schools, training centers, hospitals, and clinics, the XS50DZ's low-noise design and powerful suction system can achieve efficient cleaning without disturbing teachers, students, or patients, ensuring a clean environment free of residual water and stains.

Product Operate Guide

Preparation before powering on: Check the water level in the water tank (you can add neutral detergent, ratio ≤1:100), ensure the wastewater tank is empty and tightly closed, confirm the battery indicator light is green, the brush plate suction nozzle is intact, and the grounding wheels are flexible. Seal the machine, fasten the safety rope, and turn on the power. Check the indicator lights.

Operating steps: Press the "Mode" button to select Automatic (forward start/stop synchronized) or Manual (independent brush plate suction control); push the speed control lever to move the machine; for stubborn stains, slow down and press and hold the "Brush Plate Pressure Boost" button; in narrow areas, manually raise one side of the brush plate, and slow down when climbing slopes; to stop, first release the lever and press the "Master Stop" button, raise the brush plate suction nozzle, turn off the power, and clean the wastewater tank and wash the brush plate.

Precautions: Do not use in flammable or explosive areas; do not overload the water tank; remove large debris first to prevent damage to the brush plate; do not run over the wiring; continuous use ≤4 hours; when the battery level is below 20% (red light), charge for 6-8 hours using the original charger.

Routine maintenance: After each use, wash the water tank and clean the suction squeegee; soak and wash the oily brush plate; check the wheel wear, brush plate thickness (replace if <15mm) and button lights weekly; check the battery terminals and clean the dust off the machine body monthly.

FAQ

Q1. Is there a warranty? Do you have machine operating instruction ? Can your machine fit our voltage and plug ?

A: Our machine comes with 1 year warranty. Any damage incurred by improper usage/ negligence would not be covered by the warranty. YES ! We have English machine operating instruction, as well as instruction video to show our customer.

Q2. Can I put my own LOGO on the products?

A: Yes. You can put your own LOGO on the products and also for the packing.

Q3. Will you deliver the right goods as ordered? How can I trust you?

A: Surely. We can do Made-in-china Trade Assurance Order with you, and certainly you will receive the goods as confirmed. We are looking for long term business instead of one time business. Mutual trust and double wins are what we expect.
