Operating Procedures And Precautions for The KUER XS15D Commercial Walk-behind Floor Scrubber

The KUER XS15D is one of the best-selling products in the KUER compact floor scrubber machine series. Today, we'll introduce the operating instructions and simple maintenance of the KUER XS15D through the following steps.

1. KUER XS15D Walk-Behind Floor Scrubber Operating Procedures

Before using the KUER XS15D, the following steps are required to avoid motor damage and reduced machine lifespan due to incorrect operation.

First: Install the brush, then fill the clean water tank with clean water. If the floor is heavily soiled, you can add a suitable amount of detergent.

Second: Add defoamer to the wastewater tank to prevent excessive foam from the detergent from being sucked into the suction motor, which could damage it.

Third: Open the machine cover, then open the water valve on the machine and adjust the water flow.

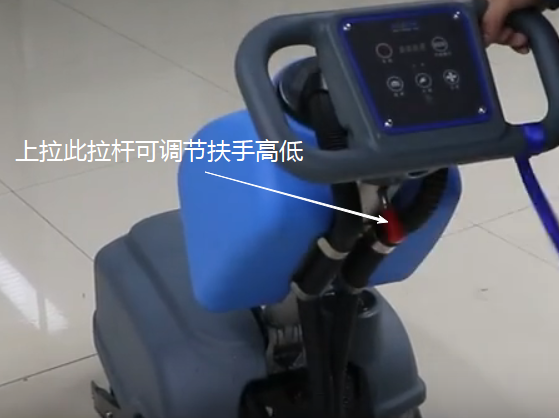

Fourth: The handle of the KUER XS15D mini floor scrubber can be adjusted horizontally by 180 degrees. Before operation, the handle height can be adjusted according to personal needs by pulling the red adjustment lever behind the water tank upwards to adjust the handle to a suitable height.

Fifth: First, turn on the machine's power switch; then turn on the power, press the water valve button to adjust the water flow, then press the brush button to start the brush, and finally press the suction motor start button for normal operation.

Sixth: After cleaning, empty the wastewater, open the wastewater tank cover, and then lift the wastewater tank upwards to remove it. After emptying the wastewater, rinse the wastewater tank with clean water to keep it clean and prevent dust accumulation from causing blockages.

2. Replacement of Parts for the KUER XS15D Walk-Behind Floor Scrubber

The KUER XS15D floor scrubber maintenance requires attention to two easily worn parts: the brush and the rubber strips.

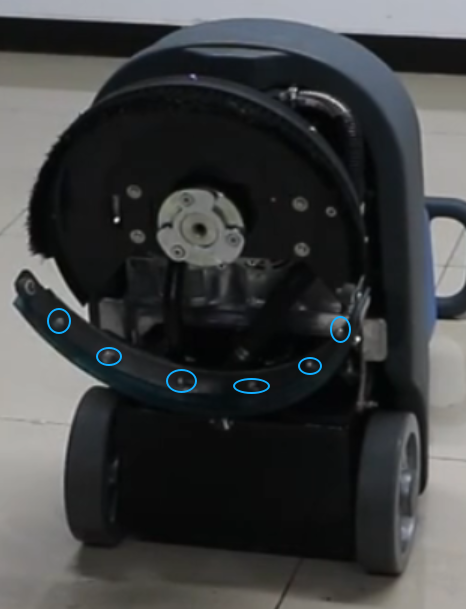

To replace the brush disc, first turn the machine off, then stand it upright and rotate the brush disc clockwise to remove and replace it. To replace the rubber strip, remove the six bolts on the rubber strip, replace it with a new absorbent rubber strip, and then reinstall the bolts.

3. Precautions for the KUER XS15D Walk-Behind Floor Scrubber

First: When pulling the machine, tilt the machine head upwards to avoid damaging the small wheel in the center of the squeegee, which would affect the squeegee's water absorption effect.

Second: If the floor is oily, add detergent. Always add defoamer to the wastewater tank. This effectively protects the squeegee motor and prevents it from making abnormal noise or burning out due to water ingress.

Third: Regularly monitor the machine's battery level. When the battery indicator shows 22V, charge it promptly until the charger light turns green and the fan stops, indicating it is fully charged.

Fourth: If the XS15D floor cleaning machine battery is not used for an extended period, recharge it regularly, at least once a week. Fifth: Cleaning agents must be liquids with low corrosiveness; powdered agents must never be used. Examples include laundry detergent and baking soda.
