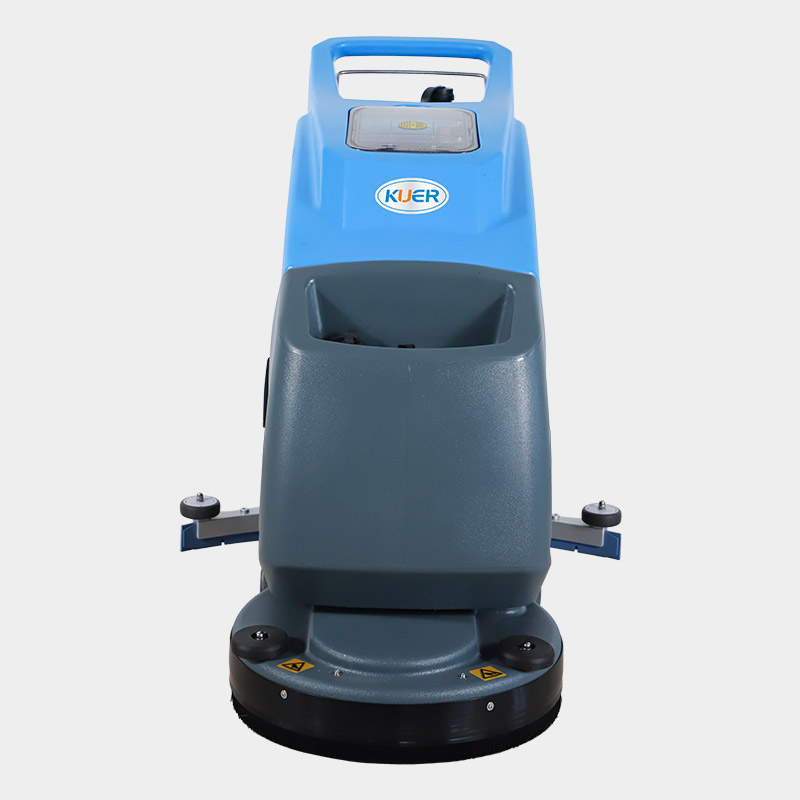

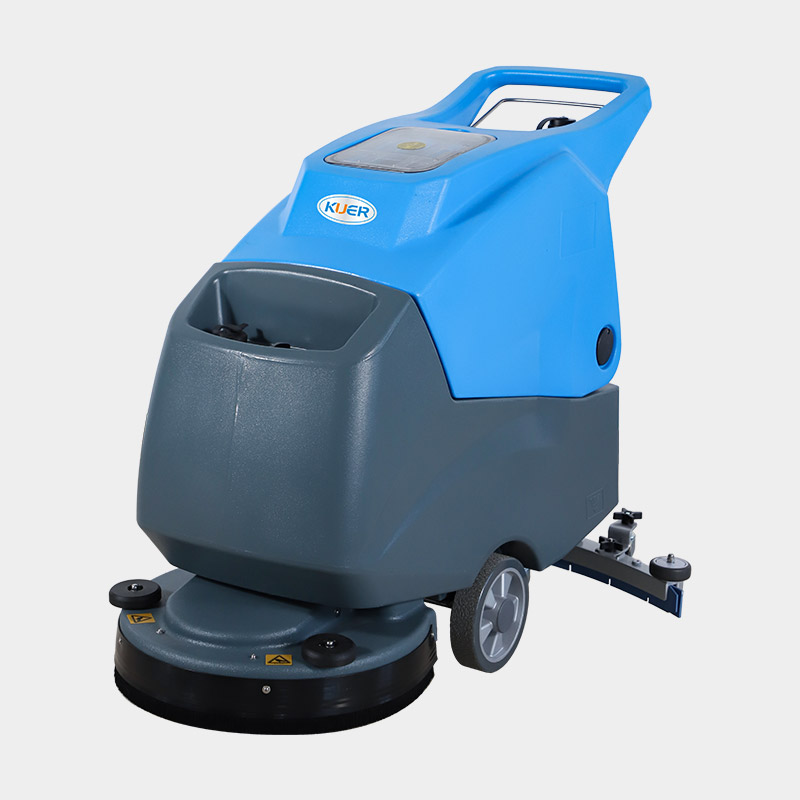

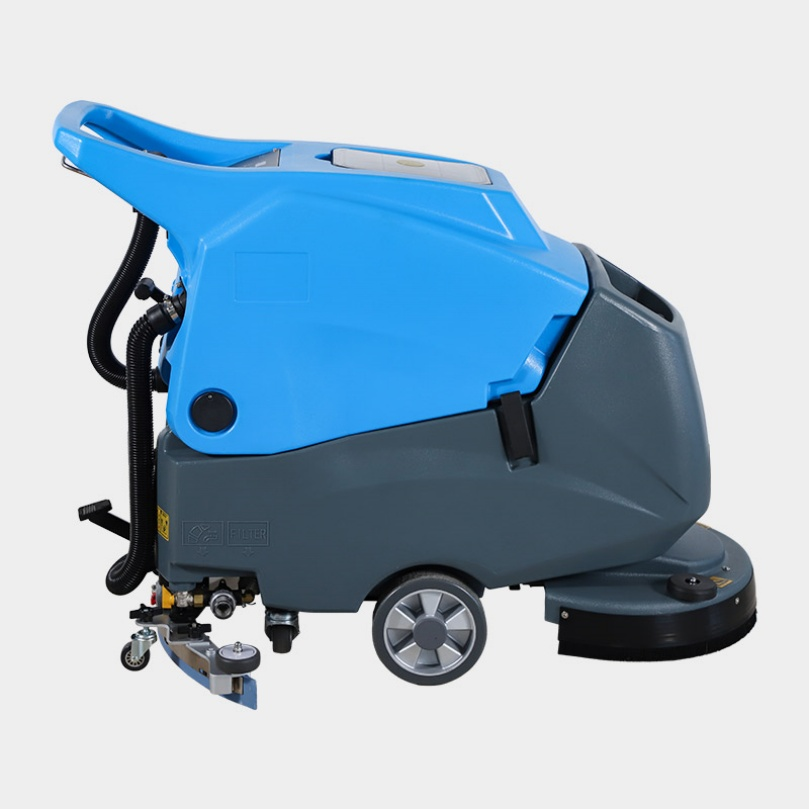

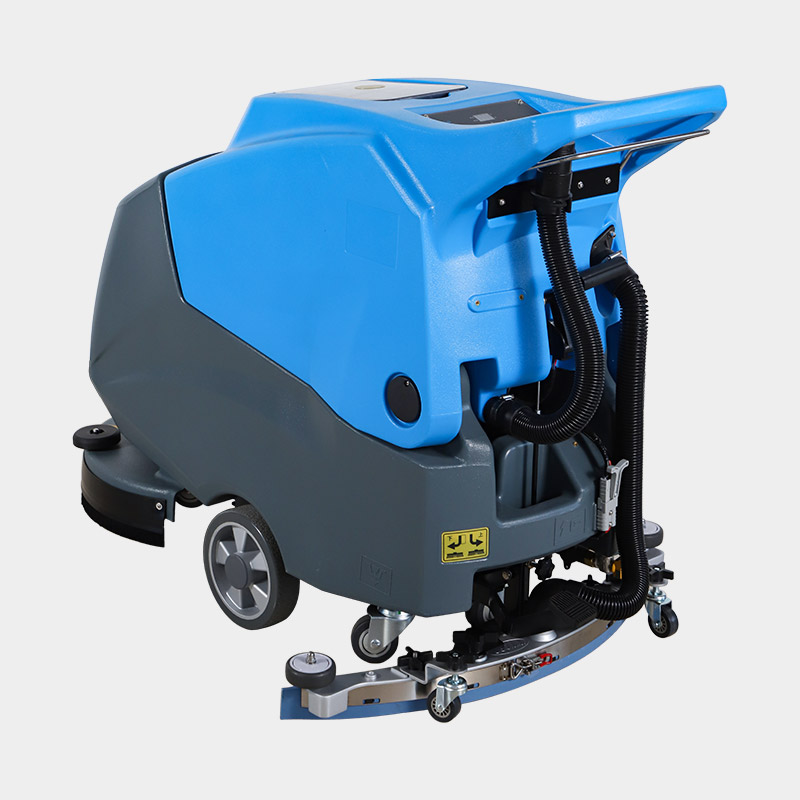

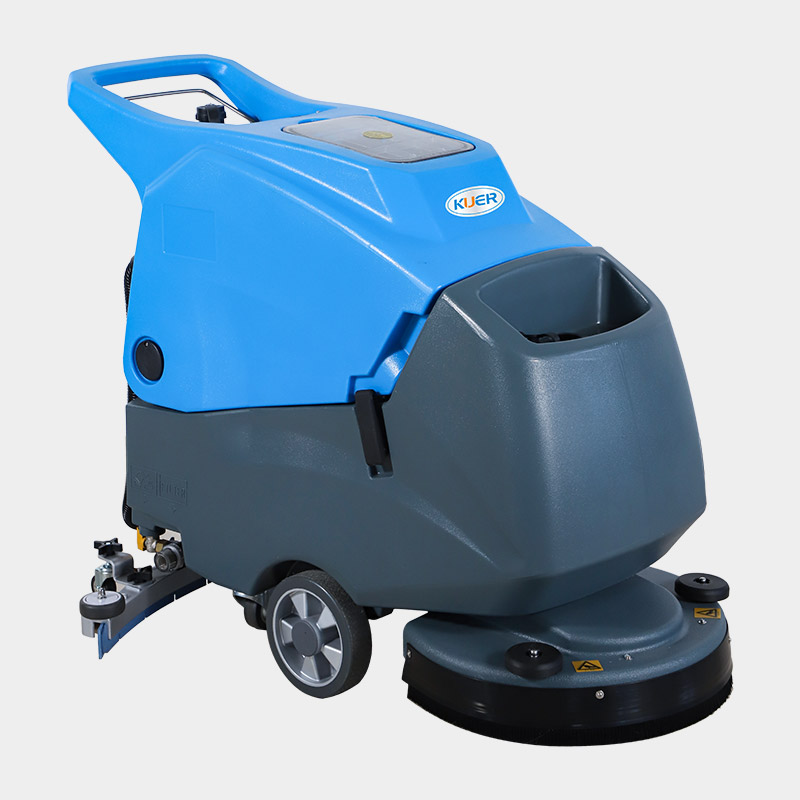

Hefei Cool Environmental Protection Technology Co., Ltd. has launched the KUER XS55D walk-behind floor scrubber. Its quiet design, with noise levels as low as 58dB(A), makes it suitable for noise-sensitive environments. It boasts a cleaning efficiency of up to 1750㎡/h, effectively reducing labor costs by 50%. The XS55D utilizes maintenance-free batteries and highly durable components, minimizing subsequent maintenance costs.
| KUER XS55D: | |
|---|---|
| Availability: | |
| Quantity: | |
XS55D
KUER
Product Advantage
Cleaning Capacity: With a 490mm washing width and an 830mm suction width, it can cover 1750㎡ of floor space per hour, equivalent to the combined cleaning efficiency of 15 manual cleaners.
Battery Life and Capacity: Equipped with a 24V 100AH maintenance-free battery (optional lithium iron phosphate cells), it can work continuously for 3.5-4.5 hours on a single charge. The large-capacity design of a 50L clean water tank and a 55L waste water tank reduces the frequency of water changes.
Power Configuration: Utilizes Ametek brand dual motors—a 550W brush motor provides powerful scrubbing, while a 400W suction motor, combined with a weighted squeegee, ensures thorough drying without residue.
Durable Structure: The body is made of imported DOW engineering plastic through rotational molding, and the chassis is made of 510L automotive-grade steel plate with a galvanized and painted finish, making it corrosion-resistant and impact-resistant. The suction strip uses Linatex material, increasing its lifespan by 30% compared to ordinary strips.
Intelligent Safety System
Equipped with an imported PG controller and automotive-grade electronic control unit, the dual-safety design automatically shuts down the machine in case of motor overload or short circuit; the wastewater tank has a built-in float alarm that provides real-time alerts when the water level is high, preventing the risk of overflow.
Convenient and Innovative Operation
The industry-rare ATSD fully automatic brush plate loading and unloading system allows for tool-free replacement, saving 80% of operation time compared to traditional manual models; aluminum alloy wheels with non-slip, non-marking tires provide agile steering and protect the ground.
Detailed Protective Design
The suction motor uses exclusive HCS hot and cold air duct separation technology, effectively isolating moisture and high temperatures, extending motor life (two-year warranty); the SOTER brand drain pipe is highly weather-resistant and adaptable to high and low temperature operating environments.
Technical Parameters
| Model | XS55D | XS55DZ |
| Cleaning path/Brush size | 830mm | 830mm |
| Max.coverage per hour | 1750㎡/h | 2800㎡/h |
| Continious operating time | 3.5-4.5H | 2.5-4H |
| Solution tank capacity | 50L(13.2gal) | 50L(13.2gal) |
| Recovery tank capacity | 55L(14.5gal) | 55L(14.5gal) |
| Battery(free maintenance) | 24V/100AH | 24V/100AH |
| Vacuum motor | 350W(0.47hp)-450W(0.6hp) | 350W(0.47hp)-450W(0.6hp) |
| Brush motor | 550W(0.74hp) | 550W(0.74hp) |
| Operating weight(inc.battery) | 142KG | 147KG |
| Operating size | 1300*830*960mm | 1300*830*980mm |
Product Uses
The KUER XS55D walk-behind floor scrubber boasts high efficiency, quiet operation, and durability as its core advantages, making it widely applicable to various commercial and industrial cleaning environments.
Industrial Plants and Production Workshops: Suitable for industries such as electronics manufacturing, food processing, and automotive parts, it quickly removes dust, oil, and residue, keeping floors clean and slip-resistant, helping businesses maintain a high-standard production environment.
Hospitals and Medical Institutions: Its 58dB(A) quiet design is suitable for quiet medical environments. It thoroughly vacuums and dries quickly, helping to maintain floor hygiene and prevent bacterial growth.
Office Buildings and Schools: Easy to operate and maneuverable, it is suitable for office areas, school buildings, and corridors, achieving efficient and quiet daily cleaning.
Product Operate Guide
KUER XS55D Walk-Behind Floor Scrubber Operating Instructions
I. Pre-Use Preparation
Check the overall appearance of the machine and the battery level to ensure the equipment is in good condition.
Open the clean water tank cover, add an appropriate amount of clean water and neutral detergent. Do not use acidic, alkaline, or foaming cleaning solutions.
Confirm that the brush, squeegee, and rubber strip are securely installed, and that the suction hose connection is airtight.
II. Start-up and Operation
Turn on the power switch and adjust the handle to a comfortable height.
Start the brush motor and suction system, and slowly push the machine forward.
The machine will automatically complete the integrated cleaning operation of "scrubbing—vacuuming—drying".
If you need to pause during operation, turn off the suction function to prevent residual liquid from remaining.
III. After Operation
Turn off all switches and disconnect the power.
Empty the wastewater tank and clean it thoroughly, while also cleaning the filter and brush residue.
Wipe the machine body with a damp cloth to keep it clean and tidy.
Connect the charger to charge the battery, ensuring good ventilation in the environment.
IV. Daily Maintenance and Precautions
Do not operate the brush plate when it is dry to avoid damaging the floor and motor.
Regularly check the wear of the absorbent strips and replace them promptly.
After cleaning, keep the wastewater tank lid open to prevent odors and bacterial growth.
For long-term storage, fully charge the device and store it in a dry, well-ventilated place.
FAQ
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: What should I consider when I choose floor sweeper?
A: Floor types (cement, epoxy, tile, ceramic, etc.), cleaning area (5000, 8000, 10000㎡, etc.), cleaning material (leaves, rocks, cigarette butts, paper, nails, etc.), operation mode (hand push or ride on), etc. are the main considering factors.
Q: How do you control your product quality?
A: Firstly, our cleaning machine products are strictly in accordance with the ISO quality and CE system requirement. Secondly, each production procedure is designated by a particular engineer. Thirdly, we have a professional QC team.
Q: Does your company accept custom made in OEM/ODM mode?
A: Yes, we accept, OEM and ODM are available. Welcome to discuss the possibility of being our distributor/agent.
