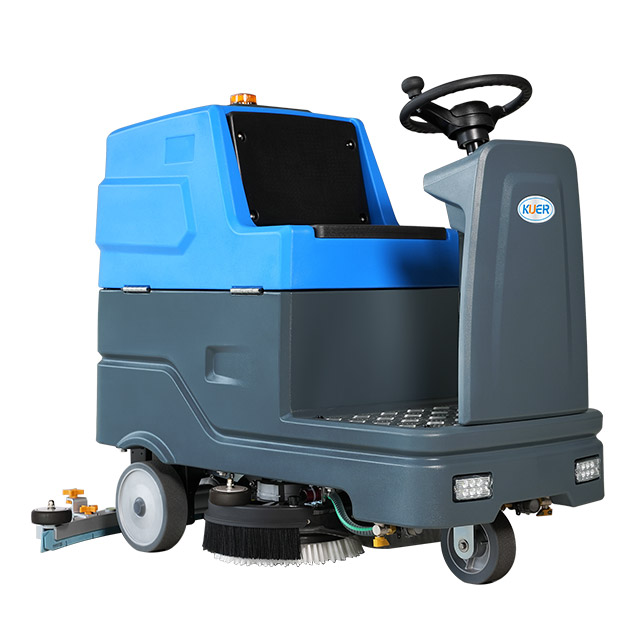

The KUER H90 commercial ride-on floor scrubber is designed for cleaning various hard floors. Equipped with an industrial-grade high-performance motor, it delivers powerful performance and consistent cleaning results. Featuring a high-quality brand battery, it offers long-lasting battery life, meeting the needs of extended continuous operation. Unique circuit protection technology effectively prevents electrical leakage when exposed to water, enhancing equipment safety. A wastewater full-water sensor automatically shuts down the machine, avoiding the risk of overflow. The intelligent one-button start control panel, combined with a solenoid valve for precise water control, enables efficient, convenient, and intelligent cleaning, making it widely applicable to large commercial and industrial locations such as warehouses, factories, shopping malls, and logistics centers.
| Availability: | |
|---|---|
| Quantity: | |
H90
KUER
Equipped with an industrial-grade high-performance powertrain, featuring a 450W drive motor, a 450W suction motor, and dual 400W brush motors, providing powerful drive and stable cleaning performance. The dual-motor brush design deeply removes stains from floors, while the powerful water suction system allows for simultaneous cleaning and wastewater recovery, significantly improving cleaning efficiency.

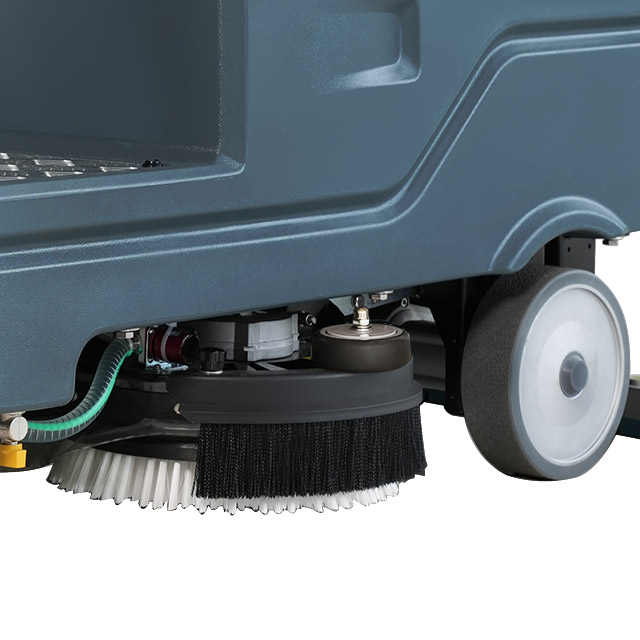

Utilizing two 13-inch disc brushes, the cleaning area is larger, and the cleaning pressure is evenly distributed, effectively removing dust, oil, and stubborn stains from floors, suitable for various hard floor surfaces. The dual brushes work together to improve efficiency per job while ensuring cleaning effectiveness.

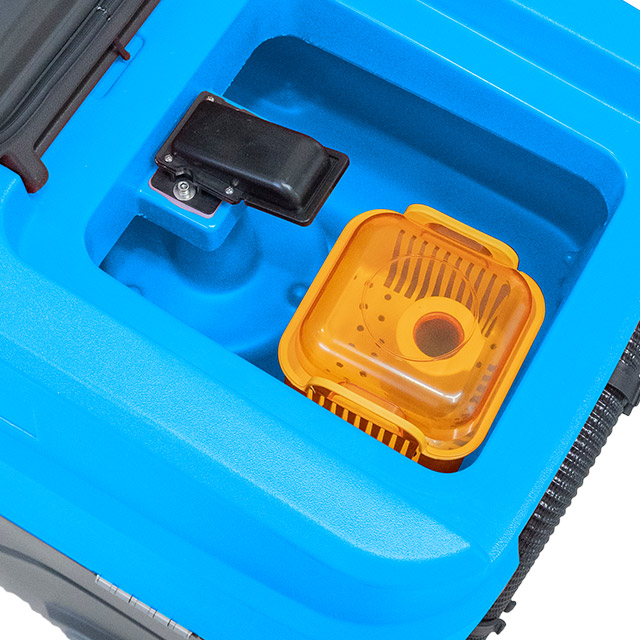

Equipped with an 85L clean water tank and a 95L wastewater tank, reducing the frequency of water filling and emptying, and increasing the equipment's continuous working capacity. The large-capacity water tank design is particularly suitable for large areas such as warehouses, factories, and shopping malls, effectively reducing labor costs and improving overall cleaning efficiency.

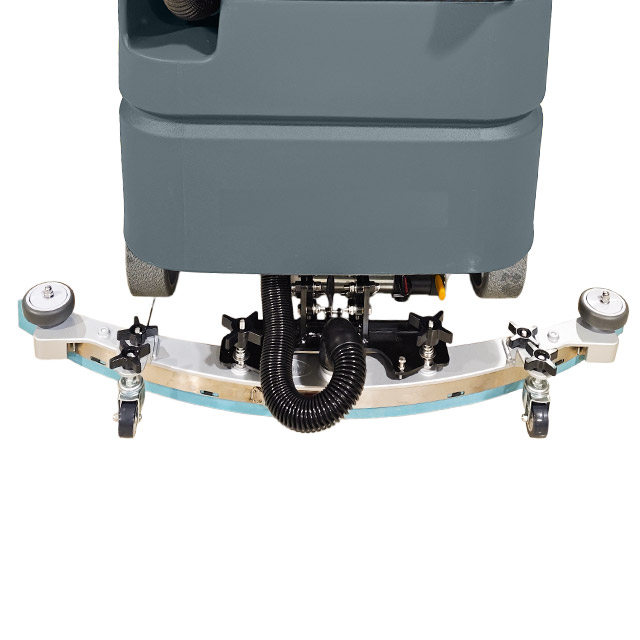

Equipped with a 920mm wide squeegee and a 450W high-performance suction motor, it achieves rapid and efficient wastewater recovery. The superior water absorption structure reduces residual water stains, allowing the floor to dry quickly after cleaning, reducing the risk of slipping and improving safety.

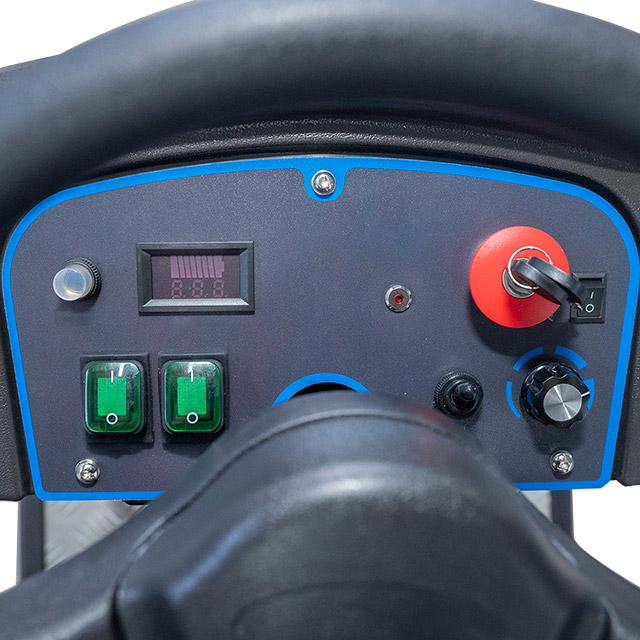

The one-button start intelligent control panel integrates equipment operation control functions, making operation simple and intuitive, lowering the barrier to entry. A solenoid valve precisely controls clean water output, intelligently adjusting the water supply according to cleaning needs, effectively saving water resources and improving cleaning efficiency.
Unique circuit protection technology effectively reduces the risks of water-related operations, improving equipment safety and reliability. It also features a wastewater sensor that automatically stops operation when the wastewater tank is full, preventing wastewater overflow and extending the equipment's lifespan.
| Model | KUER-H90 |
| Cleaning path/brush size | 720mm/13"*2 |
| Squeegee width | 920mm |
| Max.coverage per hour | 4300㎡/h |
| Continious operating time | 3-4H |
| Solution tank capacity | 85L(22.5gal) |
| Recovery tank capacity | 95L(25gal) |
| Battery(free maintenance) | 24V/120AH |
| Drive motor | 450W(0.6hp) |
| Vacuum motor | 450W(0.6hp) |
| Brush motor | 400W(0.54hp)*2 |
| Operating weight | 238KG |
| Operating size | 1380*920*1170mm |
Preparation: Check that the clean water and dirty water tanks are filled and clean. Inspect brushes, squeegee, and wheels. Ensure battery or power supply is sufficient.
Starting: Sit in the driver cabin, fasten seatbelt, turn on main power, adjust seat/steering, and start the machine.
Cleaning: Lower brushes and squeegee. Adjust brush pressure/speed based on floor type. Drive slowly for effective cleaning and water pickup.
Maintenance During Operation: Refill clean water, remove debris from brushes/squeegee, and empty dirty water tank when needed.
Shutdown: Lift brushes/squeegee, turn off power, empty dirty water, clean brushes/squeegee, and wipe the machine exterior.
Safety: Avoid slopes/high speeds. Do not modify the machine. Regularly maintain battery and water system for optimal performance.
Yes. You can put your own LOGO on the products.
We can provide plug according to your country.
Accept the OEM /ODM, the appearance and color can be customized. The emergency brake system can be customized.
We have gained : ISO9001:2015, ISO 45001:2018,ISO 14001:2015,CE for our factory.
The KUER H90 ride on floor scrubber is designed for large-area cleaning such as warehouses, factories, and shopping malls, ensuring efficient industrial floor cleaning.
The KUER H90 commercial floor scrubber can clean concrete, tile, epoxy, and other hard surfaces in industrial environments.
