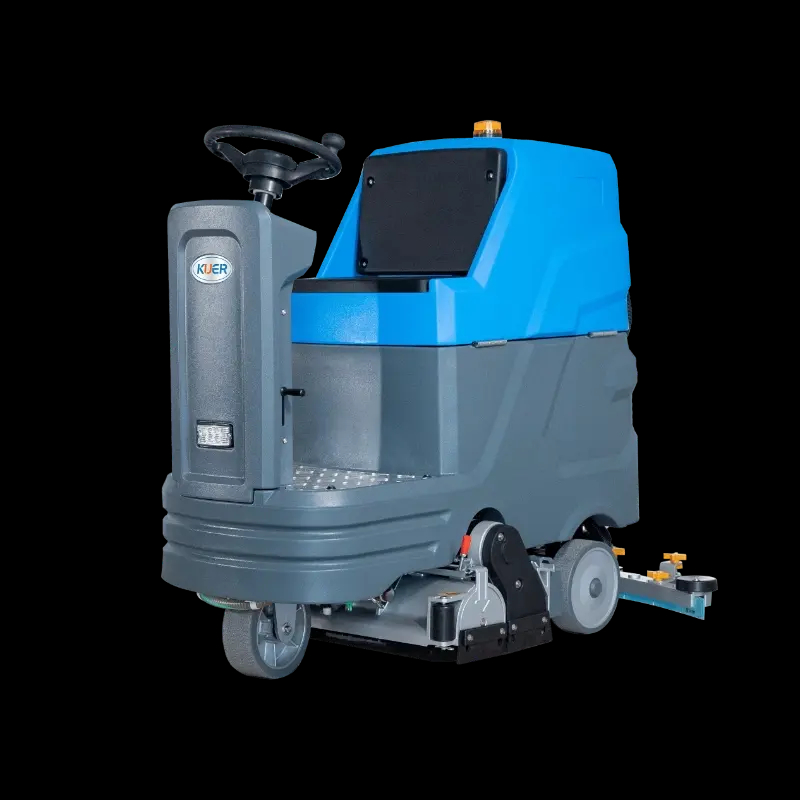

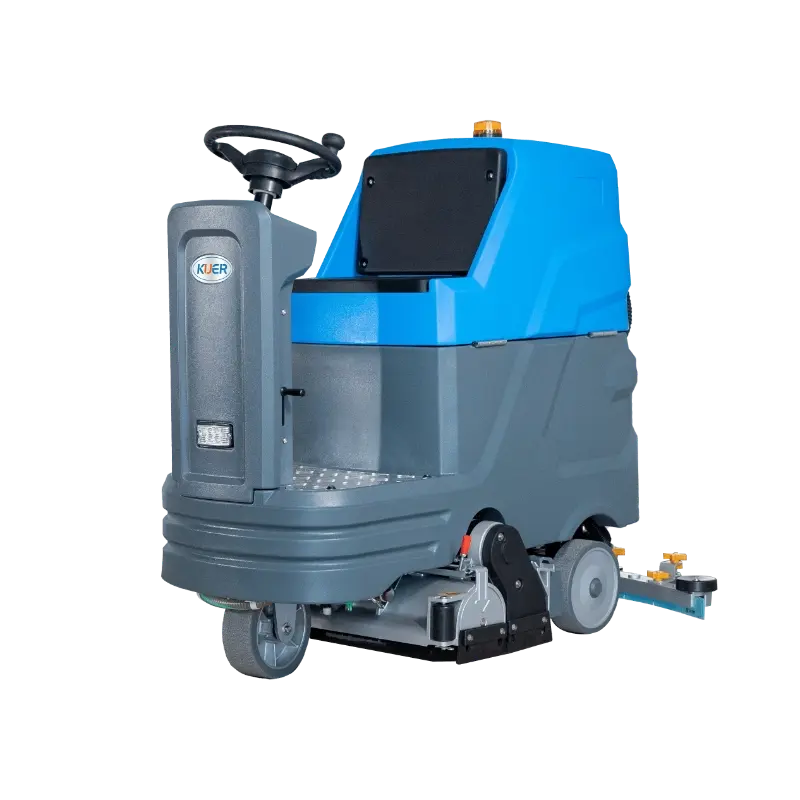

The KUER G650 is a commercial-grade ride-on sweeper and scrubber designed by Hefei Cool Environmental Protection for medium to large indoor spaces of 5000㎡ or more. Compared to traditional walk-behind floor scrubbers, its cleaning efficiency is more than 4 times higher. It uses lead-acid battery packs and mature motor technology, ensuring 3-4 hours of continuous operation while reducing equipment procurement costs by 30% compared to lithium battery models of the same power.
| Availability: | |
|---|---|
| Quantity: | |
G650
KUER
Product Advantage
1. High-Efficiency Cleaning System
Powerful Power Configuration:
Equipped with a 24V/150Ah battery pack, driving a 400W walking motor, dual 600W brush motors, and a 550W water suction motor. The brush speed reaches 650r/min, and the floor pressure is adjustable between 0-60kg, quickly removing stubborn stains such as dust and oil from concrete, tile, and stone surfaces.
Wide Cleaning Coverage:
With a cleaning width of up to 650mm and a 1000mm wide squeegee, the cleaning efficiency reaches up to 4000㎡/h, with a near 100% wastewater recovery rate, avoiding rework.
Large-Capacity Liquid Storage Design:
An 85L clean water tank and a 90L wastewater tank provide a differentiated capacity, along with a 7L independent waste storage box, reducing the frequency of water filling and emptying. A single charge allows for 3-4 hours of continuous operation.
2. Suitable Scenarios and Surface Compatibility:
As a dedicated indoor cleaning equipment, it is suitable for schools, hospitals, office buildings, shopping malls, factory workshops, and other similar locations. It is compatible with most hard surfaces such as concrete, tile, stone, and synthetic materials. However, it should not be used on non-hard surfaces such as grass, carpet, or roads. Its dimensions are 1370×1000×1230mm, allowing for easy access to elevators and accommodating multi-floor operations.
3. Safety and Operation Design:
User-friendly operation: Utilizing a standard control mode with an ergonomic cockpit design, providing a clear operating field of vision, allowing beginners to quickly learn how to use it. The walking speed is adjustable from 0-5.5km/h, and deceleration during turns ensures agility.
Multiple Safety Protections: Equipped with an electromagnetic brake, a one-button emergency stop, and an automatic warning function when reversing. The body uses passenger car-grade components, allowing it to adapt to slightly bumpy roads and ensuring operational safety.
Compliance Certification Guarantee: Certified by multiple international organizations including CE, CB, ETL, and RoHS. The core components of the electrical system are stable, reducing the risk of malfunction.
Technical Parameters
| Model | KR-G650 |
| Battery(free maintenance) | 24V/150AH |
| Charger | 24V/20A |
| Drive motor | 400W(0.54hp) |
| Vacuum motor | 550W(0.74hp) |
| Brush motor | 600W(0.8hp)*2 |
| Min. aisle turn | 1200mm |
| Cleaning path mm(brush size"inch) | Φ155*650*2 (Cylindrical brush) 0~60Kg(Adjustable pressure) |
| Squeegee width | 1000mm |
| Max. coverage per hour | 4,000㎡/h |
| Gradeability | 25 |
| Solution tank capacity | 85L (22.5Gal) |
| Recovery tank capacity | 90L(24Gal) |
| Continious operating time | 3~4h |
| Charging time | 6~8h |
| Operating Weight | 285Kg |
| Operating size | 1370*1000*1230 |
Core positioning: High-efficiency cleaning of medium and large indoor hard floors, solving the pain points of "large area, high cost, and difficult staining".
1. Commercial Service Scenarios
Core Scenarios: Large shopping malls, supermarkets, office buildings, hotel lobbies
Suitable Features: 4000㎡/h high-efficiency cleaning, 100% wastewater recycling with no water accumulation, compact design allows for cleaning across floors
Value: Replaces 8-10 workers, shortens cleaning time, and reduces customer disruption
2. Public Service Scenarios
Core Scenarios: Primary and secondary school buildings, hospital corridors, government service halls
Suitable Features: Low noise, high safety (anti-slip/emergency stop), easy disinfection to meet high hygiene standards
Value: Does not affect normal operations, achieves high-frequency, high-standard cleaning, and reduces safety hazards
3. Industrial Auxiliary Scenarios
Core Scenarios: Electronic/mechanical workshops, large warehouses
Suitable Features: Powerful cleaning to remove stubborn stains, 3-4 hours of runtime + large-capacity water tank supports continuous operation
Value: Improves cleaning efficiency, reduces the impact of stains on production/warehousing, and reduces labor intensity
Suitable Logic: Focuses on "5000㎡+ area, hard floors, high efficiency" "High standards / Continuous demand" avoids non-hard surfaces and focuses on cost reduction and efficiency improvement in medium and large venues.
Product Operate Guide
I. Safety Precautions (Must Read Before Operation)
Scope of Application: Only suitable for indoor hard floors (concrete, tile, stone, etc.). Do not use on grass, carpets, outdoor roads, etc.
Personnel Requirements:Operators must be familiar with this instruction manual. New operators must be trained before starting work. Minors or those without the necessary skills are prohibited from using this equipment.
Environmental Contraindications: Avoid flammable, explosive, damp, or electrically leaky environments. Remove large debris (stones, ropes, etc.) from the ground to prevent the brush plate from getting stuck or parts from becoming entangled.
II. Pre-Start Preparation and Inspection:
1. Equipment Appearance and Component Inspection: Inspect the machine body (1320×740×1240mm) for damage. Ensure the brush plate, squeegee, and cable are not loose or damaged.
Confirm the Brush Plate is Correctly Installed:** Align the brush plate with the motor flange and tighten it counterclockwise. Lower the handle and test the rotation; it should not come loose. For stubborn stains, replace the needle holder with a fiber pad. 1. Check that the squeegee's rubber strips are tightly fitted, the suction hose connection is secure, and there is no aging or damage.
2. Water and Electricity System Check
Open the clean water tank (left side) and wastewater tank lids, confirming that the tanks are clean and free of debris, and that the wastewater tank is empty.
Add clean water to the clean water tank, and add an appropriate amount of cleaning solution according to the degree of soiling (refer to the cleaning agent instructions for the proportion), with a total capacity not exceeding 90L; leave 100L of capacity space in the wastewater tank.
Insert the key to turn on the power, and check the power indicator light: the 24V/150Ah battery pack should show a full charge (it is recommended to stop using and charge when the remaining power is ≥20%).
III. Core Operating Procedures
1. Start-up and Parameter Adjustment
Set in the driver's seat, fasten the safety buckle, turn the key to the "ON" position, and the system will perform a self-check for 3 seconds (operation is possible if there is no alarm). 1. Adjusting the brush pressure: Select 0-60kg pressure according to the level of dirt on the floor (10-30kg for light dirt, 40-60kg for heavy dirt). The default brush speed is 650r/min.
2. Setting the walking speed: Adjust the knob to 1-3km/h (recommended for beginners), with a maximum speed of 5.5km/h.
3. Cleaning operation
4. Pressing the "Brush Lower" button to ensure the brush is fully on the ground (do not start while suspended to avoid damage to the equipment).
5. Pressing the "Suction Start" button to automatically attach the squeegee to the ground.
6. Gently pressing the accelerator pedal to move the equipment forward and begin cleaning; release the pedal to slow down when turning to avoid collisions with obstacles.
7. Observing the clean water tank level during cleaning; stop the machine and add water if it is low; an alarm will be triggered when the waste water tank is full, and it must be emptied immediately.
8. Special scenario handling
9. Oily floors: Can be cleaned repeatedly 1-2 times, or replace with a strong cleaning agent. Multi-floor operation: After cleaning one floor, turn off all functions, raise the brush and squeegee, and push it to the elevator for transfer (the machine size is compatible with standard elevators). IV. Shutdown and Maintenance Procedures
1. Normal Shutdown Procedure: Release the accelerator pedal, press the "Brush Up" and "Squeegee Stop" buttons, and return the function knobs to their original positions. Drive the equipment to the drainage point, open the wastewater tank drain valve to empty the wastewater, and remove the 7L waste bin to clean out debris. Turn the key to the "OFF" position, remove the key, and turn off the main power switch.
2. Cleaning and Maintenance: Rinse the brush and squeegee rubber strips with clean water to remove any tangled debris; if the rubber strips are worn, replace them promptly to ensure 100% wastewater recovery. Wipe the machine body, open the clean water tank vent, and store the equipment in a dry and ventilated place. Battery Maintenance: Charge the battery promptly after each use (charging time 6-8 hours). If the machine is not in use for a long period, recharge it once a month.
FAQ
Q:How to carry out after-sales service?
A:During the warranty period, everything is free except for wearing parts and man-made damage. You need to provide the defect parts,then we will be free to repair or change for you.
Q.Which kinds of batteries can we choose?
A:Our standard equipped Lead-acid battery, Also can use lithium battery according your request.
Q:what quality system has been gained for your factory ?
A: We have gained : ISO9001:2015, ISO 45001:2018,ISO 14001:2015,CE for our factory.
