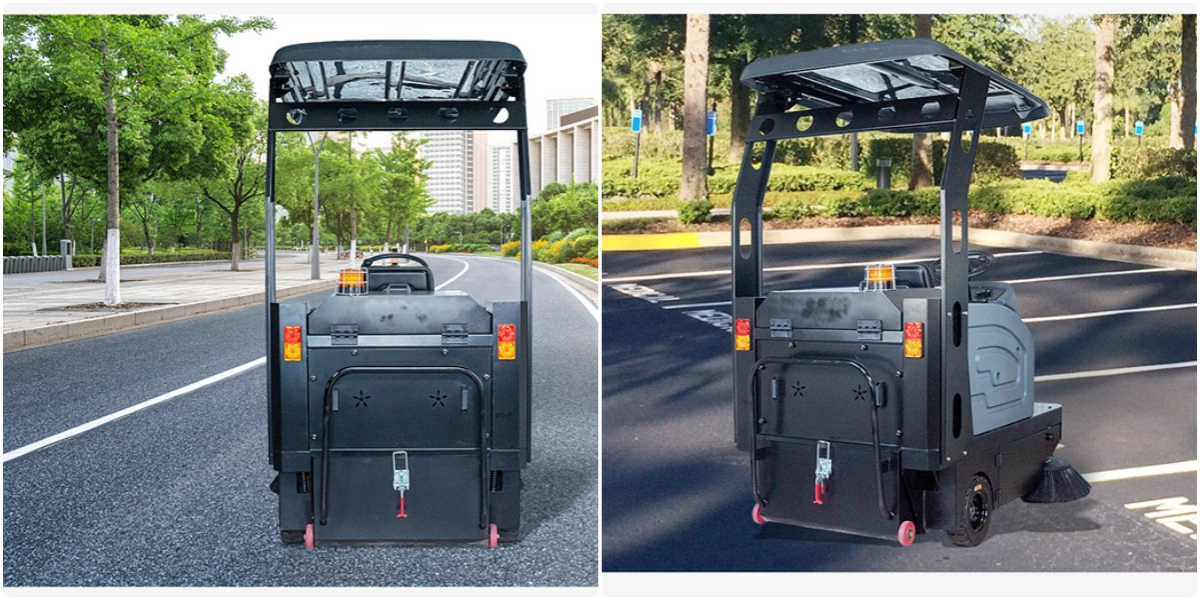

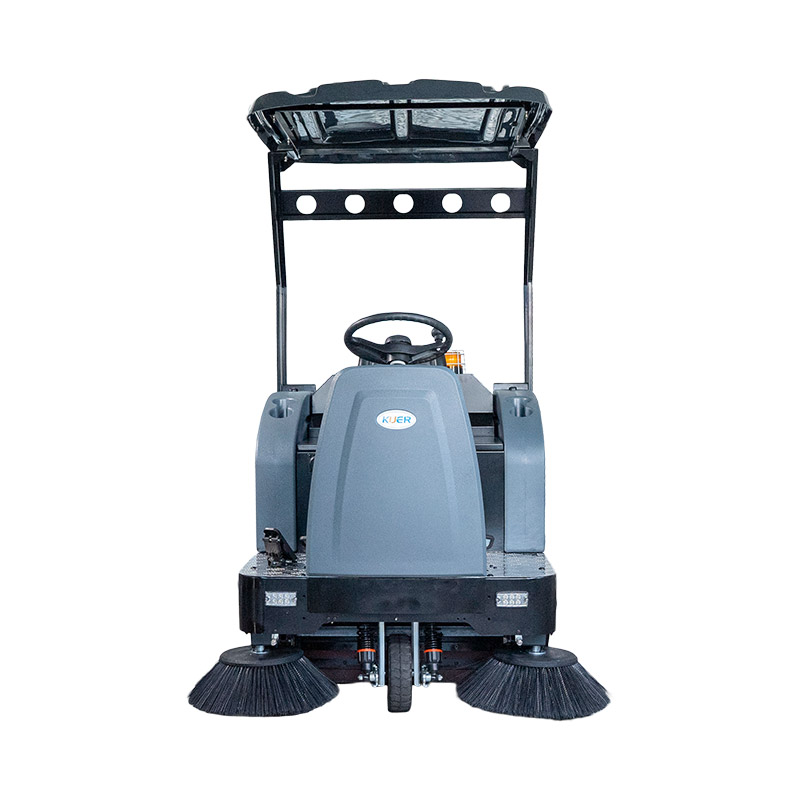

The KUER XJ1450 is a commercial ride-on sweeper launched by Cooler Environmental Protection, designed specifically for medium to large-sized industrial plants, logistics warehouses, and medium to large-sized outdoor public facilities. Equipped with a powerful main brush and side brush system, it efficiently cleans dust, paper scraps, and particulate debris, significantly improving cleaning efficiency and reducing labor costs. Its ride-on design allows for easy operation and flexible steering, adapting to complex environments. A durable structure and large-capacity dustbin ensure low maintenance and long-term continuous operation.
| Availability: | |
|---|---|
| Quantity: | |
SJ1450
KUER
Product Advantage
I. Cleaning Efficiency and Intelligent Cleaning Advantages
The KUER XJ1450 commercial floor sweeper boasts a 1450mm cleaning width, equipped with a 300×700mm main brush and 500mm dual side brushes. In automatic mode, the brush disc, water suction, water spraying, and movement are synchronized, automatically shutting off when stopping. The water volume is adjustable to adapt to different floor dryness levels, achieving highly efficient and intelligent cleaning—a truly efficient automatic floor sweeper solution.
II. Power and Environmental Advantages
Powered by a 48V/80Ah maintenance-free battery, coupled with a 950W main brush, a 1000W drive motor, and two 90W side brush motors, it can operate continuously for 2.5–3.5 hours. Electric drive replaces traditional fuel, resulting in pollution-free cleaning that meets environmental protection requirements. Simultaneously, its stable power meets the needs of long-term, high-frequency operation, making it an environmentally friendly and efficient industrial floor sweeper.
III. Capacity Configuration and High-Efficiency Operation Advantages
The 90L clean water tank and 150L waste bin reduce the frequency of water refills and waste emptying. The large capacity design, combined with a cleaning efficiency of 8700㎡ per hour, improves overall operational continuity and reduces manpower waiting and operational interruption costs, making it an ideal commercial floor sweeper for large venues.
IV. Machine Specifications and Flexible Durability Advantages
Weighing 465kg, with dimensions of 1700×1400×1250mm (including a 2050mm top cover), a minimum turning radius of 1500mm, and a climbing ability of 25%. The design balances flexibility and durability, featuring motor soft start, overcurrent protection, wastewater full protection, a clean water tank low water indicator, an adjustable universal squeegee, and four-sided replaceable wear-resistant rubber strips, ensuring operational safety and reducing later maintenance costs. It is a flexible and reliable automatic floor sweeper.
Technical Parameters
| Model | KR-SJ1450 |
| Battery (free maintenance) | 48V/80Ah |
| Charger | 24V/15A |
| Drive motor (W) | 1000W |
| Vacuum motor (W) | 500W |
| Cylidrical brush motor (W) | 850W |
| Side brush motor (W) | 90W*2 |
| Min. aisle turn (mm) | 1500mm |
| Cleaning path (mm) | 1450 |
| Cylindrical brush width (mm) | ∮300*700 mm |
| Side brush width (mm) | ∮500 mm |
| Max. coverage per hour (㎡/h) | 8700 |
| Water tank capacity (L) | 90L |
| Debris hopper capacity (L) | 150L |
| Gradeability (%) | 25% |
| Continious operating time (h) | 2.5~3.5h |
| Charging time (h) | 8~10h |
| Operating Weight (inc. battery) | 465Kg |
| Operating size (mm) | 1700*1400*1250mm 1700*1400*2050mm (Top cover) |
Product Uses
Industrial Plants and Warehousing Centers: The SJ1450 features a wide cleaning width and a powerful suction system, quickly removing dust, paper scraps, metal shavings, and debris from industrial plants or warehouses, maintaining a clean production environment. Its efficient industrial floor sweeper function is suitable for large-area continuous operation, reducing manual cleaning costs and improving work efficiency.
Suitable for public places such as train stations, airports, and public transportation hubs, the SJ1450 can handle large-area floor cleaning, promptly removing dust, paper scraps, fallen leaves, and other debris, ensuring pedestrian safety and demonstrating the advantages of a highly efficient and intelligent automatic floor sweeper.
Park Roads and Outdoor Plazas: With its excellent climbing ability and wide cleaning area, the SJ1450 can be used for sweeping operations on park roads, plazas, and outdoor parking lots, efficiently removing sand, fallen leaves, and debris, reducing the frequency of manual maintenance and improving the overall cleanliness of the park.
Product Operate Guide
KUER SJ1450 Ride-on Sweeper Quick Start Guide
1. Pre-start Check
Check battery power (48V/80Ah) to ensure it is fully charged.
Check that the main brush, side brushes, and vacuum system are securely installed and free of obstructions.
Empty the dustbin and fill the water tank to the safety mark (if compatible).
2. Start-up and Mode Selection
Self-seat in the driver's seat and depress the brake or safety pedal.
Turn on the power and confirm the instrument panel displays correctly.
Select the operating mode:
Automatic Mode: Brushes, side brushes, vacuuming, and spraying are automatically activated.
Manual Mode: Allows individual control of brushes, side brushes, or spraying functions.
Adjust sweeping speed and water volume to suit different floor conditions.
3. Sweeping Operation
Move forward smoothly, ensuring the brushes are in contact with the ground.
Slow down or stop immediately when encountering obstacles or pedestrians.
You can reverse or turn to continue working, covering the entire area.
4. Shutdown and Cleaning
Stop moving forward. In automatic mode, the brush, suction, and spray functions will automatically shut off.
Turn off the power and remove the key.
Empty the dustbin, clean the brush and suction system, and check for brush bristle wear.
For long-term storage, place in a dry, well-ventilated area and disconnect the power.
5. Safety Precautions
Familiarize yourself with the operation and emergency stop procedures.
Do not operate on slopes exceeding 25%.
Do not use in flammable, explosive, or corrosive environments.
Regularly check the battery, brush, and squeegee assembly to ensure the equipment is safe and reliable.
6. Daily Maintenance
Clean the brush, side brushes, and suction device after each use.
Check the battery voltage and wiring monthly to maintain power supply.
Regularly check the squeegee rubber strips for wear and replace them promptly. Keep the ground clean and dry.
FAQ
Q: Will the machines be supplied with accessories?
A: Yes, all machines will come with the necessary accessories.
Q: How do you provide after-sales service?
A: All our machines are accompanied by a user manual. If you encounter any issues, we will promptly provide support by sending photos or videos for guidance. Additionally, we have a professional team of engineers to assist you.
Q: Can your machines be customized?
A: Yes, we accept and support OEM (Original Equipment Manufacturing) and ODM (Original Design Manufacturing) services. If you are interested in becoming our distributor or agent, let's discuss more details.
Q: How do you control product quality?
A: Firstly, our cleaning equipment is strictly manufactured in accordance with ISO quality standards and CE certification
requirements. Secondly, each production process is assigned to specific personnel for dedicated supervision. Thirdly, we have a professional QC (Quality Control) team to conduct thorough inspections throughout the production cycle.
