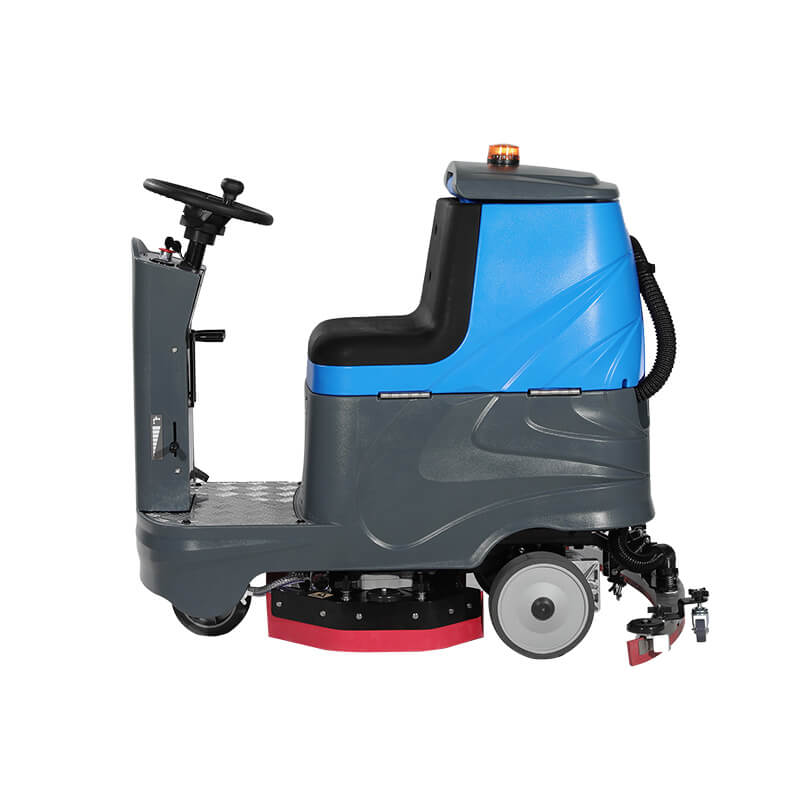

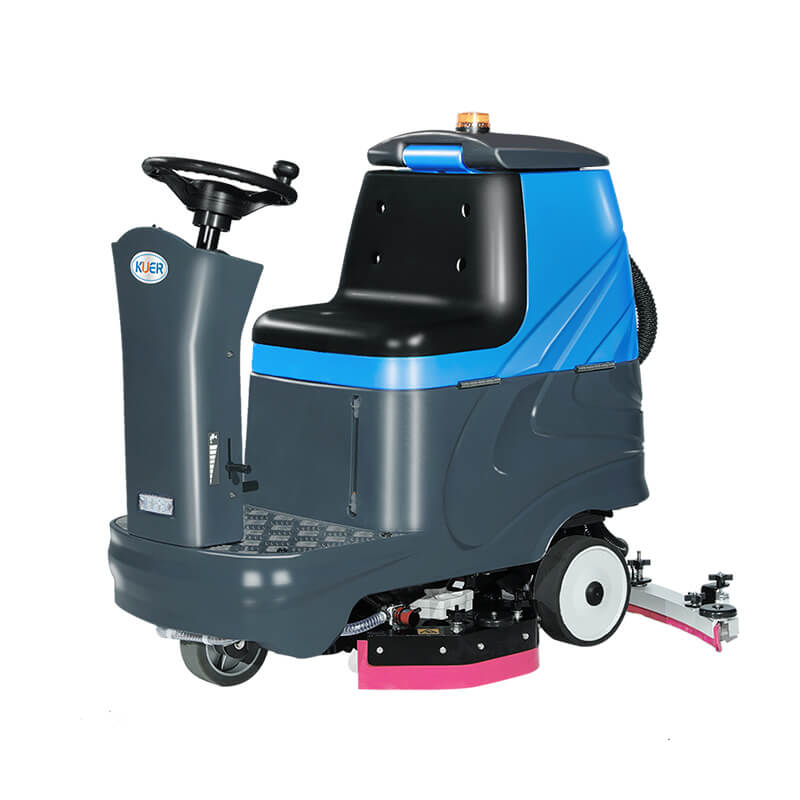

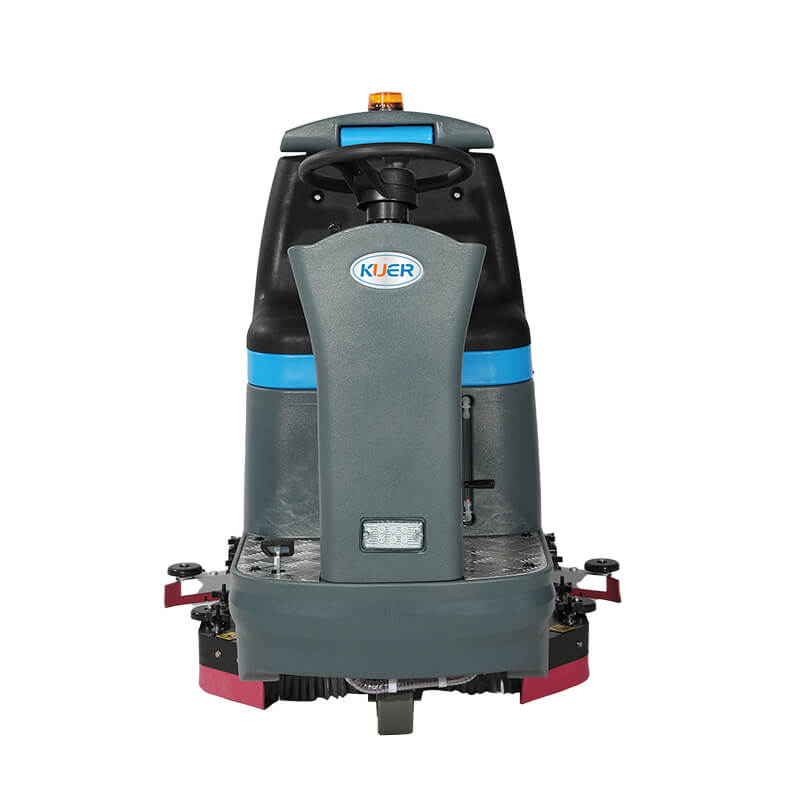

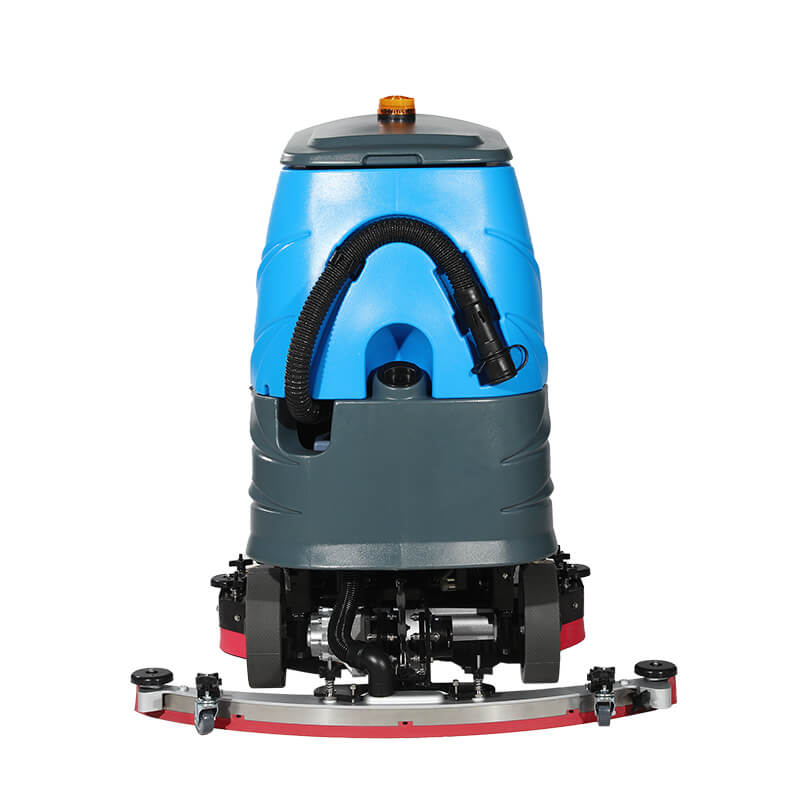

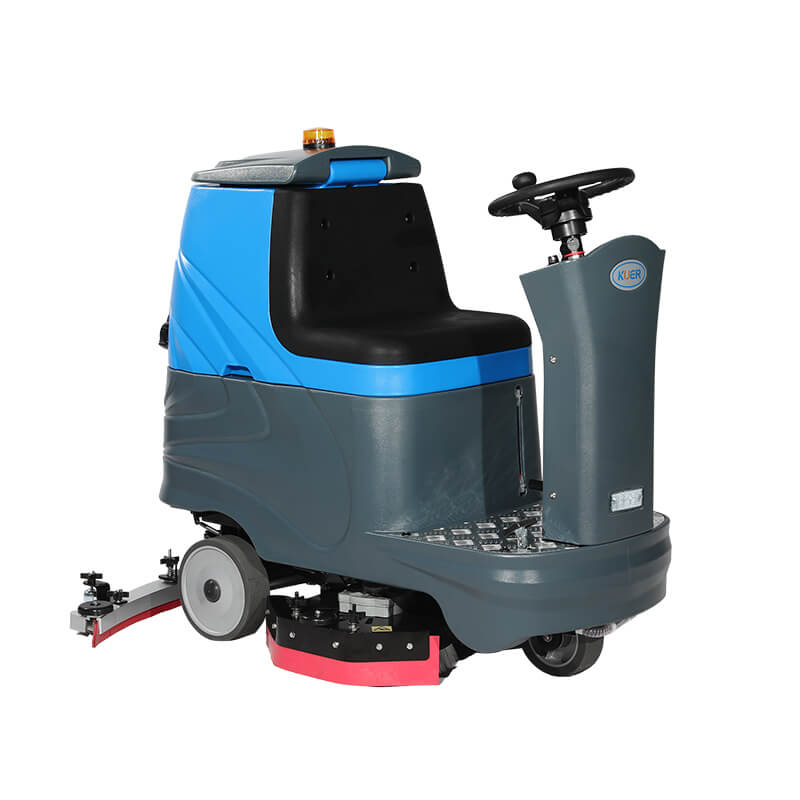

The KR-XJ70S is a compact “ride-on” floor scrubbing machine (small-sized driver model) ideal for medium to large floor spaces requiring efficient, high-productivity cleaning. It features dual disc brushes, battery-powered drive and cleaning functions, and a maneuverable footprint for tighter areas.
| Availability: | |
|---|---|
| Quantity: | |
XJ70S
KUER
Product Advantage
Increased productivity: thanks to dual brushes and ride-on usage, more area can be covered in less time.
Reduced labor fatigue: operator remains seated, making it suitable for longer cleaning shifts.
Lower downtime: sizable solution & recovery tanks, and longer continuous run time 3~4 hours.
Better floor finish: strong suction combined with large squeegee width ensures floors are left clean and dry.
Compact footprint: despite being ride-on, the machine’s dimensions allow it in many indoor settings.
Technical Parameters
| Model | KR-XJ70S |
| Battery(free maintenance) | 24V/120A |
| Charger | 24V/15A |
| Drive motor | 400W(0.54hp) |
| Vacuum motor | 450W(0.6hp) |
| Brush motor | 400W(0.54hp)*2 |
| Min. aisle turn | 1150mm |
| Cleaning path mm(brush size"inch) | 360mm/13"*2 |
| Squeegee width | 920mm |
| Max. coverage per hour | 4300㎡/h |
| Solution tank capacity | 70L(18.5gal) |
| Recovery tank capacity | 75L(20gal) |
| Continious operating time | 3~4h |
| Charging time | 6~8h |
| Operating Weight (inc. battery) | 220Kg |
| Operating size | 1300*920*1140mm |
Product Uses
1.Commercial Spaces: Suitable for small supermarkets, restaurants, hotels, and more, cleaning aisles, dining areas, and lobbies to maintain a clean environment.
2.Office Spaces: Suitable for offices and office building corridors, removing dust, paper scraps, and other items to create a pleasant working environment.
3.Public Service Spaces: Ensure floor hygiene and safety in hospital waiting areas and school building corridors.
4.Industrial Spaces: Suitable for factory workshop aisles and warehouses, cleaning oil stains, debris, and other items to facilitate access and management.
5.Residential Spaces: Suitable for cleaning living rooms, dining rooms, and other areas in larger households, ensuring cleaner floors.
Product Operate Guide
*Before use, inspect the machine and prepare the water tank (fill it with clean water to the level and empty and reinstall the wastewater tank). If the battery is low, recharge it.
*Press the power switch to turn on the machine and select the desired mode.
*Hold the handles with both hands and push the machine at a steady speed, ensuring that the brush makes contact with the floor.
*You can adjust the water level during cleaning and monitor the wastewater tank indicator.
*When finished, turn off the mode and then the power. Clean the wastewater tank, brush, and rubber strips, and store them in a dry place.
*Perform regular maintenance, replace worn parts promptly, and contact after-sales service in the event of a malfunction.
Q:How to carry out after-sales service?
A:A:During the warranty period, everything is free except for wearing parts and man-made damage. First, you need to provide the bad parts; then we will be free to repair or change for you.
Q:What about your floor cleaning machine price?
A:Anytime, high quality is the primary standard of our factory, on the top quality basis, sure you will get reasonable and satisfied price!
Q:How long it takes for lead time?
A: For sample, 1-5 days after payment; for bulk order, 5-10 days after deposit.
Q: Does your company accept custom-made?
A:Yes, we accept it, OEM and ODM supported.If you want to be our distributor or agent, let's talk more details.
